This item is Discontinued.

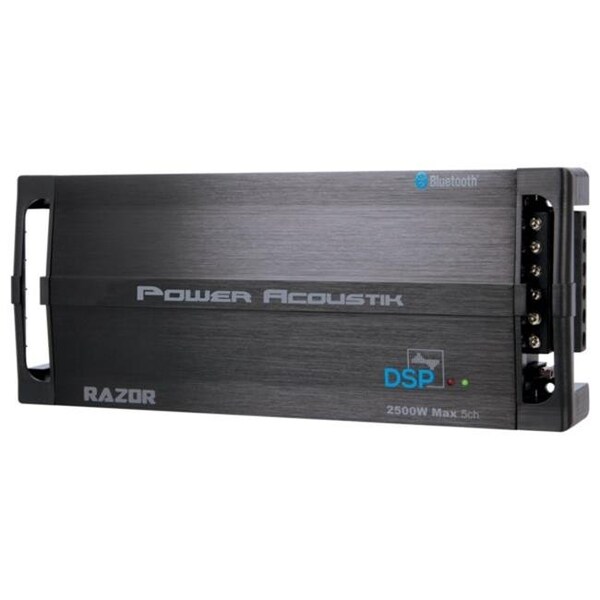

Power Acoustik Power Acoustik RZ5-2500DSP 5 Channel Class D Amplifier with DSP & Bluetooth RZ5-2500DSP

This item is Discontinued.

Power Acoustik

Power Acoustik RZ5-2500DSP 5 Channel Class D Amplifier with DSP & Bluetooth (Discontinued)

Mfr # RZ5-2500DSP
Zoro # G804028771
UPC # 709483059528
Country of Origin China
Category Automotive Speakers & Amplifiers
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RZ5-2500DSP
Zoro #
G804028771
UPC #
709483059528
Country of Origin
China

Description

Audio tuning with user-friendly Razor DSP user interface with response display works with either free Razor DSP app for iOS or Android devices or USB connection to personal computer.

Features
  • High efficiency full range amp with 56-bit digital audio processor powered by Analog Devices
  • Compact 4.75 in. chassis design for installation versatility
  • Selectable ACC or signal sense turn-on
  • 2,500 watts max power
  • 100 watts x 4 + 400 watts x 1 at 4 ohms
  • 150 watts x 4 + 600 watts x 1 at 2 ohms
  • 300 watts x 2 + 600 watts x 1 at 4 ohms bridged
  • 2 ohm stereo and 4 ohm bridged full range operation
  • 200 millivolts to 4 volts low level RCA balanced inputs
  • 30 volts max speaker/high level inputs
  • Optional signal input from hands-free Bluetooth module
  • Optional independent input or channel mixing/summing
  • 8 gauge direct connect speaker wire terminals and direct connect power/ground wire terminals
  • 10 band parametric equalizer
  • Independent high, low, or BP 20 to 20 kHz crossover
  • Independent 6 dB to 30 dB/octave crossover slope
  • Selectable Linkwitz-Riley, Bessel, or Butterworth Filter
  • 12 dB bass boost increases low octave harmonics
  • Mosfet power supply with Audiophile Grade IR(TM) transistors
  • Military grade SMT (surface mount technology) PCB (printed circuit board) maintains dynamic performance
  • Direct short, thermal, and overload circuit protection
Includes:
  • Remote Gain
Specifications
  • Frequency Response: 10 Hz to 20 kHz
  • Signal to Noise Ratio: 70 dB
  • Total Harmonic Distortion: 0.05%
  • Dimensions: 4.75 x 1.5 x 13.25 in.
  • Weight: 5.65 lbs
