Power First

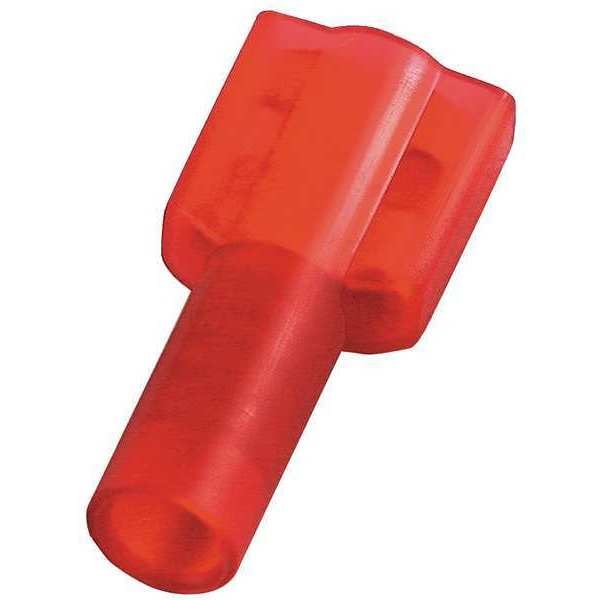

Female Disconnect, Red, 22-16AWG, PK100

product price: $25.99
/pk 100, $0.26/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Wire Range 22 to 16 AWG
  • Insulation Type Nylon
  • Connection Type Crimp
See all product information

Product Information

Dimensions

Tab Size 0.032 in x 0.250 in
Overall Length 0.886 in
Barrel Inside Dia. 0.067 in
Maximum Wire Size 16 AWG
Barrel Inside Diameter 0.067 in
For Wire Size 16 AWG, 18 AWG, 20 AWG, 22 AWG
Tab Width 0.25 in
Strip Length 1/4 in
Barrel Size Standard
Minimum Wire Size 22 AWG
Barrel Outside Diameter 0.157 in

Details

Item Female Disconnect
Insulation Full
Insulation Color Red
Wire Range 22 to 16 AWG
Insulation Type Nylon
Connection Type Crimp
Seam Butted
Max. Voltage 300 V
Max. Temp. 221 Degrees F
Connection Material Brass
Standards UL/cUL Listed
Maximum Voltage 300 V
Disconnect Style Tab
Contact Finish Tin
Insulation Coverage Full Coverage
Seam Style Butted
Current 10 A
Termination Style Crimp
Terminal Types Female Socket
Contact Material Brass
Maximum Operating Temperature 221 Degrees F
Connection Orientation Straight
Terminal Type Socket
Tab Thickness 0.032 in
UL 94 Flammability Rating V-2
RoHS Compliant Yes
Barrel Style Crimp
Insulation Material Nylon

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
