Product Information
MFR #
5UGK0
Zoro #
G2848544
UPC #
190735599068
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
1.457 in
Barrel Inside Dia.
0.134 in
Maximum Wire Size
10 AWG
Tab Width
0.25 in
Minimum Wire Size
12 AWG
Barrel Size
Standard
Strip Length
3/8 in
Tab Thickness
0.032 in
Barrel Outside Diameter
0.295 in
Barrel Inside Diameter
0.138 in

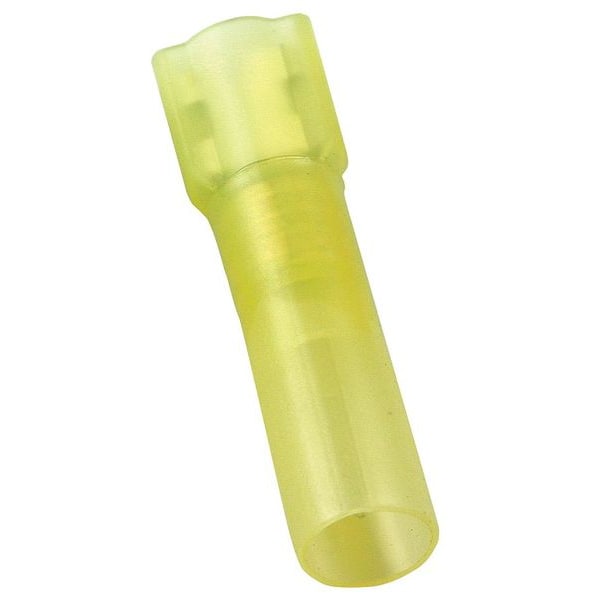

Description
Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Polyolefin, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
