  11. Male Disconnect, Red, 22-16AWG, PK100
Shop All Wire Disconnects
Power First

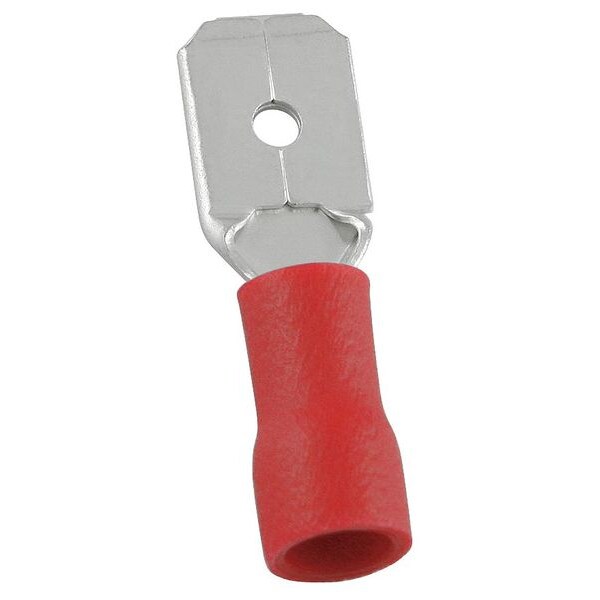

Male Disconnect, Red, 22-16AWG, PK100

original price: $12.79
10% off
new price: $11.49
/pk 100, $0.11/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Red
  • Connection Type Crimp
  • Insulation Type Vinyl
  • Wire Range 22 to 16 AWG
See all product information

Product Information

Dimensions

Overall Length 0.827 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.067 in
Barrel Inside Diameter 0.067 in
Maximum Wire Size 16 AWG
Barrel Outside Diameter 0.157 in
Tab Width 0.25 in
Barrel Size Standard
For Wire Size 16 AWG, 18 AWG, 20 AWG, 22 AWG
Minimum Wire Size 22 AWG
Strip Length 1/4 in

Details

Item Male Disconnect
Insulation Partial
Insulation Color Red
Connection Type Crimp
Insulation Type Vinyl
Wire Range 22 to 16 AWG
Seam Butted
Max. Temp. 167 Degrees F
Max. Voltage 300 V
Connection Material Brass
Standards UL/cUL Listed
Disconnect Style Tab
Contact Finish Tin
UL 94 Flammability Rating V-0
Connection Orientation Straight
Insulation Material Vinyl
Termination Style Crimp
Maximum Operating Temperature 167 Degrees F
Barrel Style Crimp
Insulation Coverage Partial Coverage
Terminal Type Tab
Seam Style Butted
Tab Thickness 0.032 in
Maximum Voltage 300 V
RoHS Compliant Yes
Terminal Types Male Tab
Contact Material Brass
Current 10 A

Description

Male Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 167 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
