1-13/16 in. Steel Ball Bearing Sliding Door Tandem Roller Assembly (Discontinued)

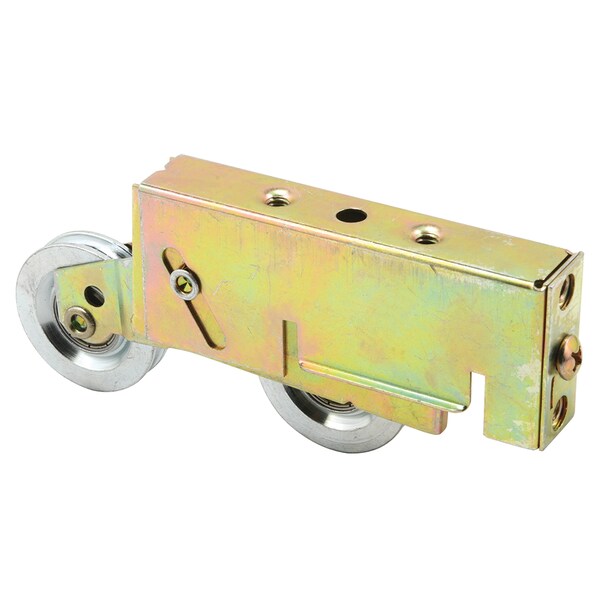

This is a plain back tandem roller assembly used by Armour Vue, Atlas and a variety of other sliding patio door manufacturers. It has in-line tandem inner housing with 1-13/16 in. concave or grooved steel ball bearing rollers set in a stamped steel housing with rear adjustment. The housing is 1-13/16 in. tall and 7/8 in. wide and is held in place by screws installed into the #10-32 machine thread mounting screw holes on the top of the housing.

Used by Armour Vue, Atlas and a variety of sliding patio door manufacturers

Plain back housing with two 10-32 machine screw mounting holes 1-5/8 in. on center

1-13/16 in. diameter concave tandem steel rollers

Stamped steel housing with ball bearing rollers

Features rear screw adjustment

Used on metal and vinyl framed sliding patio doors

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
