  11. Cylinder, hyd, 4 In Bore x 8 In Stroke
Shop All Double Acting Hydraulic Cylinders
Prince

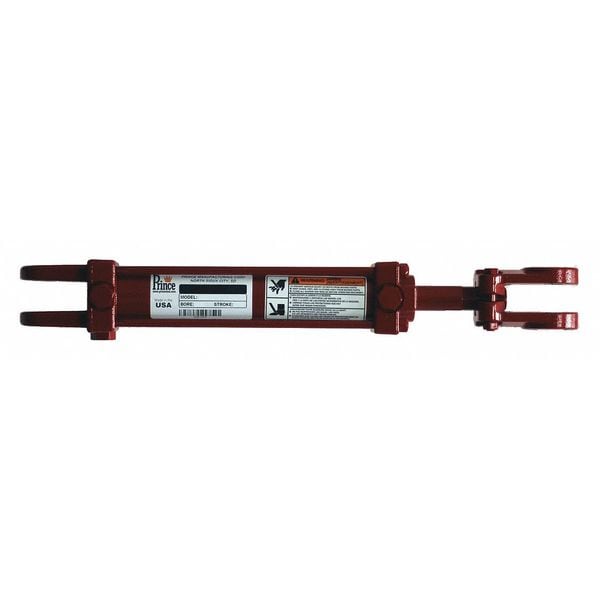

Cylinder, hyd, 4 In Bore x 8 In Stroke

product price: $462.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cylinder Style Tie-Rod
  • Bore Dia. 4 in
  • Stroke Length 8 in
  • Max. Pressure 2,500 psi
  • Retracted Length 20 1/4 in
See all product information

Product Information

Dimensions

Bore Dia. 4 in
Stroke Length 8 in
Retracted Length 20 1/4 in
Rod Dia. 1 1/2 in
Port Size 3/4"-16 SAE
Extended Length 28 1/4 in
Rod Thread Size 1-1/2"-12
Dimension J (In.) 1-1/4
Bore Dia. (In.) 4
Pin Dia. 1 in
Dimension H (In.) 1.06
Dimension D (In.) 1-3/4
Dimension F (In.) 1-7/8
Dimension G (In.) 5-1/4
Dimension C (In.) 1.015
Dimension E (In.) 2-7/16
Dimension A (In.) 3/16
Dimension K (In.) 1-1/2-12 UNF
Dimension L (In.) 1-1/4
Dimension N (In.) 1
Dimension O 1-13/16"
Port Size (SAE) 3/4-16
Dimension B (In.) 3/4-16
Rod Dia. (In.) 1-1/2

Details

Item Hydraulic Cylinder
Cylinder Style Tie-Rod
Max. Pressure 2,500 psi
Column Load Full PSI
Piston Material Ductile Iron
Tube Material Precision Honed
Rod Seal Type Urethane U-Cup
Tubes Precision Honed
Inlet SAE (In.) 3/4-16
Material Steel
Stroke (In.) 8
Piston Seal O-Ring and Back-Up
Rod Seal Urethane U-cup
Retract (In.) 20-1/4
Ring Material Rubber O-Ring
Tie Rods Steel
Max. Pressure (PSI) 2500
Finish Painted
Type Double Acting Tie Rod
Piston Rod Polished Chrome
Includes Pins and Retainers
Single Acting/Double Acting Double Acting
Body Material Steel
Piston Seal Type O-Ring and Back-Up
Piston Rod Material Chrome Plated
Duty Rating Standard Duty

Description

Hydraulic Cylinder, Tie-Rod, Bore Dia. 4 in, Stroke Length 8 in, Rod Dia. 1 1/2 in, Retracted Length 20 1/4 in, Port Size 3/4 In.-16 SAE, Extended Length 28 1/4 in, Max. Pressure 2,500 psi, Temp. Range -, Piston Material Ductile Iron, Piston Rod Material Chrome Plated, Ring Material Rubber O-Ring, Tube Material Precision Honed, Body Material Steel, Tie Rods Steel, Finish Painted, Standards -, Includes Pins and Retainers, Pin Dia. 1 in
