This item is Discontinued.

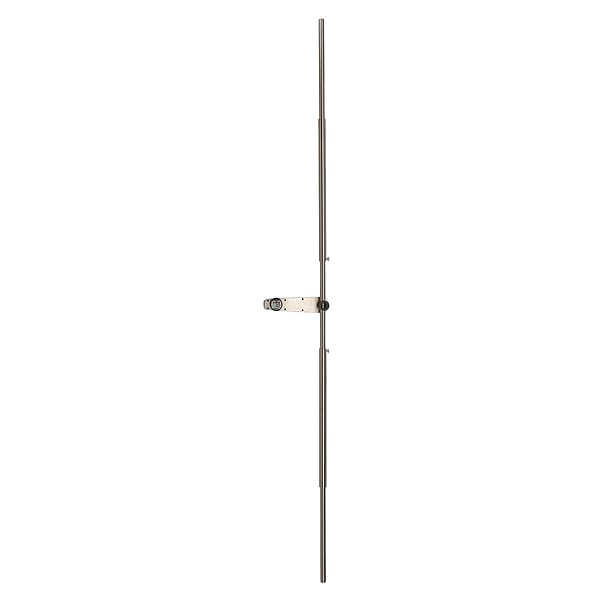

Proto Elect Torque Wrench, Dial, 1" In, Fixed J6351

This item is Discontinued.

Proto

Elect Torque Wrench, Dial, 1" In, Fixed (Discontinued)

Mfr # J6351
Zoro # G6792283
UPC # 662679012236
Country of Origin United States
Category Electronic Torque Wrenches
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
J6351
Zoro #
G6792283
UPC #
662679012236
Country of Origin
United States

Dimensions

Drive Size
1 in
Overall Length
125 in
Overall Width
4 in
Wire Rope Length
125 in
Length
125 in
Fits Chest Size
(5) Extension Bars, High Contrast Rotary Dial Display

Details

Item
Electronic Dial Torque Wrench
Head Type
Standard
Ratcheting
No
Calibration Certificate Included
Yes
Torque Measurement Type
Foot-Pound, Newton-Meter
Torque Range (in.-lbs.)
200 to 2,000 in-lb
Torque Range (Ft.-Lb.)
200 to 2,000 ft-lb
Torque Range (Nm)
271 to 2,700 N-m
Visual/Audible Indicators
Audible and Visual
Material
Alloy Steel
Rotation
Clockwise and Counterclockwise
Power Source
(1) 9V Battery
Features
(5) Extension Bars, High Contrast Rotary Dial Display
Graduations (ft.-lbs.)
1
Accuracy
+/-1% Of Torque Reading CW/CCW @ 10-100 % Of Full Scale
Converts
ft-lb, in-lb, Nm
Standards
ASME B107.28
Graduations (Nm)
1
Meets/Exceeds
ASME B107.28
Includes
Blow Molded Case
Nonsparking
No
Torque Adjustability
Adjustable
Color
Black
Weight
46 lb
Insulated
No
Extended Data Testing
Yes, NIST
Torque Range
200 to 2,000 ft-lb
Clockwise Accuracy
+/-1% CW
Corrosion Resistant
Yes
Measurement Type
SAE
Angle Settings
359 Degrees
Minimum Torque
200 ft-lb
Handle Type
Ergonomic
Voltage
9 V DC
Maximum Torque
2,000 ft-lb
Finish
Chrome
Counterclockwise Accuracy
+/-1% CCW
Power Source - TS Only
(1) 9V Battery
Power Source - old
(1) 9V Battery
Shell Material
Alloy Steel
Wire Color
Black

Description

Extended operation range in Ft-Lb, In-Lb and Nm units
Precision Accuracy: +/- 1% in BOTH directions
Accuracy valid from 10% to 100% of full scale

Additional Features:

  • Large easy to read digits
  • Patented rotary bezel. LCD and key pad rotate both ways, up to 359 degrees for easy viewing
  • Torque target zone adjustable 1% to 10% indicates when the desired torque limit is approaching
  • Yellow light indicates the low end of the zone
  • Green light and buzzer sounds when the target is reached
  • Red light with intermittent buzzer indicates over-torqued
  • One button target torque setting
  • Ergonomically designed for user comfort
  • Operates on standard 9 volt battery
  • Torsion drive strain gauge technology improves accuracy
  • Users can pull on the handle anywhere and still maintain accuracy
  • Built on durable chrome body (not painted) with nylon-6 rotary bezel
  • Rotary dial is shrouded with metal walls to protect display
  • Peak, hold and track modes standard
  • Fast sampling rate helps maintain high accuracy during torque applications
  • Easy to use by production line or quality control inspector
  • Meets or exceeds ASME B107.28
