  9. Whole House Fan, Steel, 1-Speed, 156W, 120V
Shop All Whole House Fans
Quietcool

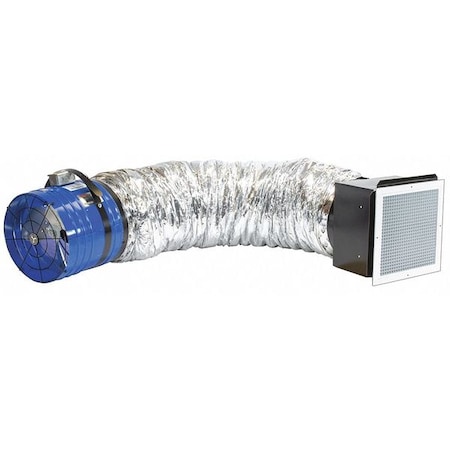

Whole House Fan, Steel, 1-Speed, 156W, 120V

product price: $469.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Direct Drive
  • Blade Dia. 14 in
  • Fan Voltage 120V AC
  • Coverage (Square-Ft.) 495 to 735
  • CFM High 1,472
See all product information

Product Information

Dimensions

Blade Dia. 14 in
Power Cord Length (Ft.) 6
Grille Width 16 in
Overall Width 16 in
Power Cord Length 6 ft
Grille Length 16 in
Duct Diameter 14 in
Overall Diameter 15 in
Overall Depth 16 in
Blade Diameter 14 in
For Cut-Out Height 14 1/2 in
Duct Length 6 ft
For Cut-Out Width 14 1/2 in
Manufacturer Warranty Length 10 yr

Details

Exhaust/Supply Fan Item Exhaust Fan
Type Direct Drive
Fan Voltage 120V AC
Coverage (Square-Ft.) 495 to 735
CFM High 1,472
Mounting Location Ceiling
Number of Blades 3
Drive Package Included No
Housing Finish Painted
Motor Type Permanent Split Capacitor
Fits 16 in or 24 in Center Joists
Propeller Material Steel
Includes 6 ft Duct, Accessory Bag, Damper Box, Window Lock
Speed 1
Housing Material Steel
Agency Compliance UL Listed
Watts 685
Hz 60
Item Whole House Fan
Phase 1
Guard Material Steel
Electrical Connection Hardwired
Guard Type Exhaust
Noise Level @ 0.000 in SP @ 5 ft 1.9 sones
Wattage 117 W
Exhaust Airflow @ 0.000 in SP 1,472 cfm
Maximum Airflow 1,472 cfm
Vent Design Ducted
Drive Type Direct Drive
Includes Dehumidistat No
Free Area 2 sq ft
Motor Enclosure Open Dripproof
Guard Finish Powder Coated
Nameplate Voltage 120V AC
Assembled Unassembled
Standards UL Listed
Frame Material Steel
Duct Shape Round
Ventilation Type Exhaust
Fan Style Whole-House
Supply Airflow @ 0.000 in SP 1,472 cfm
Maximum Coverage Area 736 sq ft
Exhaust Airflow @ 0.100 in SP 1,472 cfm
Maximum Noise Level 1.3 sones
Control Type Switch
Speed Controllable No
Noise Level @ 0.100 in SP @ 5 ft 1.9 sones
Number of Speeds 1
Number of Fans 1
Includes Grill Yes
Blade Material Steel
Frequency 60 Hz
Includes Motor Yes
Full Load Current 1.21 A
Quiet Design Yes
Grille Material Aluminum
High-Efficiency Motor No
For High-Static Pressure Applications Yes
Rough Opening Type Square
Coverage Area 736 sq ft

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design Yes, Number of Speeds 1, Nameplate Voltage 120V AC, Speed Controllable No, Blade Diameter 14 in, Drive Type Direct Drive, Maximum Airflow 1,472 cfm, Maximum Noise Level 1.3 sones, Wattage 117 W, Coverage Area 736 sq ft, Rough Opening Type Square, For High-Static Pressure Applications Yes, High-Efficiency Motor No, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed
