This item is Discontinued.

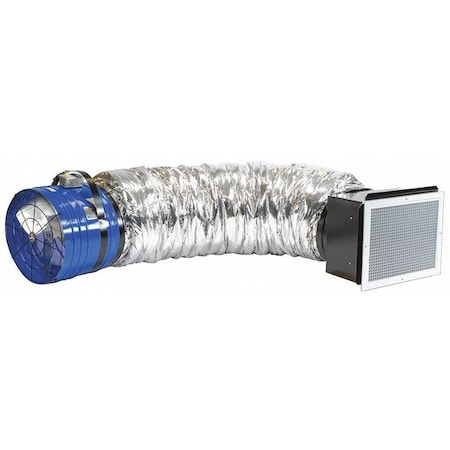

Quietcool Steel Ceiling 20"L 17"W Whole House Fan QC CL-2250

This item is Discontinued.

Quietcool

Steel Ceiling 20"L 17"W Whole House Fan (Discontinued)

Mfr # QC CL-2250
Zoro # G8795543
UPC # 811658020018
Country of Origin United States
Category Whole House Fans
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QC CL-2250
Zoro #
G8795543
UPC #
811658020018
Country of Origin
United States

Dimensions

Blade Dia.
16 in
Power Cord Length (Ft.)
6
Grille Length
20 in
Manufacturer Warranty Length
10 yr
Duct Length
6 ft
For Cut-Out Width
18 1/2 in
Overall Depth
20 in
Blade Diameter
16 in
Power Cord Length
6 ft
Overall Width
17 in
Overall Diameter
17 in
Grille Width
16 in
For Cut-Out Height
14 1/2 in
Duct Diameter
16 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Type
Direct Drive
Fan Voltage
120V AC
Coverage (Square-Ft.)
825 to 1,230
CFM High
2,465
Mounting Location
Ceiling
Fits
16 in or 24 in Center Joists
Speed
2
Motor Type
Permanent Split Capacitor
Agency Compliance
UL Listed
Number of Blades
3
Item
Whole House Fan
Housing Material
Steel
Watts
250
CFM Low
1,910
Housing Finish
Painted
Includes
6 ft Duct, Accessory Bag, Damper Box, Window Lock
Hz
60
Drive Package Included
No
Propeller Material
Steel
Phase
1
Speed Controllable
No
Guard Finish
Powder Coated
Assembled
Unassembled
Noise Level @ 0.100 in SP @ 5 ft
2.9 sones
Includes Motor
Yes
Vent Design
Ducted
Exhaust Airflow @ 0.000 in SP
2,465 cfm
Guard Material
Steel
Maximum Airflow
2,465 cfm
Includes Grill
Yes
Noise Level @ 0.000 in SP @ 5 ft
2.9 sones
Duct Shape
Round
Fan Style
Whole-House
Drive Type
Direct Drive
Maximum Coverage Area
1,233 sq ft
Includes Dehumidistat
No
Motor Enclosure
Open Dripproof
Blade Material
Steel
Ventilation Type
Exhaust
Maximum Noise Level
1.5 sones
Electrical Connection
Hardwired
Supply Airflow @ 0.000 in SP
2,465 cfm
Nameplate Voltage
120V AC
Exhaust Airflow @ 0.100 in SP
2,465 cfm
Wattage
250 W
Free Area
3.3 sq ft
Control Type
Switch
Frequency
60 Hz
Guard Type
Exhaust
Frame Material
Steel
Number of Fans
1
Full Load Current
2.46 A
Number of Speeds
2
Standards
UL Listed
Grille Material
Aluminum
High-Efficiency Motor
No
Quiet Design
Yes
Coverage Area
1,233 sq ft
Rough Opening Type
Rectangular
For High-Static Pressure Applications
Yes

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design Yes, Number of Speeds 2, Nameplate Voltage 120V AC, Speed Controllable No, Blade Diameter 16 in, Drive Type Direct Drive, Maximum Airflow 2,465 cfm, Maximum Noise Level 1.5 sones, Wattage 250 W, Coverage Area 1,233 sq ft, Rough Opening Type Rectangular, For High-Static Pressure Applications Yes, High-Efficiency Motor No, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed
