Shop QUINCY LAB

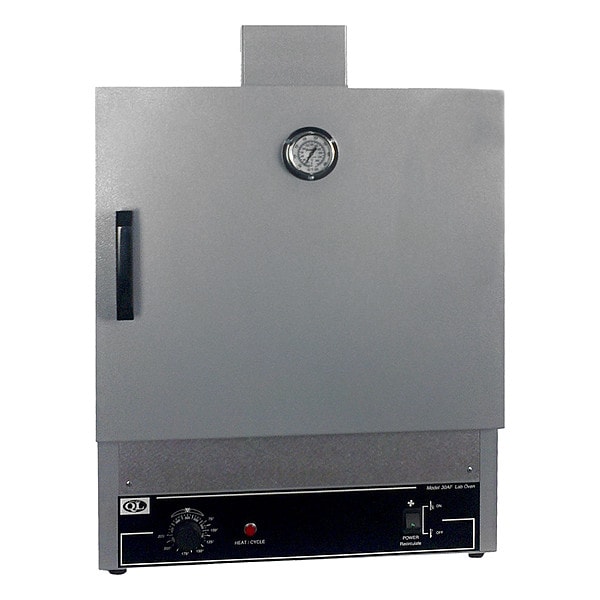

Forced Air Oven, 1600W

  • Mfr # 30AF

  • Zoro # G2300210

product price:
$
1,283.99
/ea
Free Shipping & Returns

Key Features

Overall Depth
14 1/4 in
Overall Height
29 in
Overall Width
20 in
Convection Type
Forced Air
Capacity
1.83 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30AF
Zoro #
G2300210
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
14 1/4 in
Overall Height
29 in
Overall Width
20 in
Chamber Height
14.625 in
Overall Dimensions
28.5" x 20" x 14"
Chamber Width
18 in
Chamber Depth
12 in
Inside Usable Dimensions
14.13" x 18" x 12"
Manufacturers Warranty Length
2 yr
Interior Height
14 1/4 in
Interior Width
18 in
Interior Depth
12 in

Details

Item
Lab Oven
Convection Type
Forced Air
Capacity
1.83 cu ft
Volume
1.83 cu ft
Wattage
1,500 W
Voltage
120V
Features
Resistive-Tubular Incoloy Heating Elements
Standards
cULus
Programmable
Not Programmable
Watts
1,500 W
Housing Material
Steel
Includes
(2) Adjustable Nickle Plated Wire Shelves, (4) Shelf Brackets
Amps
12.5 A
Thermostat
Hydraulic
Door Material
Steel
Capacity (Cu.-Ft.)
1.83
Capacity (ML)
52,000
Power Consumption
1600W
Temp. Range (C)
Ambient 25 Degrees to 232 Degrees
Number of Doors
1
Shelf Capacity
35 lb
Material
Steel, Thermoplastic (Handle)
Temp. Accuracy
+/- 6 Degrees F
Temp. Range (F)
Ambient +25 Degrees to 450 Degrees
Chamber Material
Aluminized Steel
Power Requirement
12.5A
Temp. Range
Amb. +25 Degrees F to 232 Degrees C
Number of Shelves
3
Preheat Time
22 min to 232.22 Degrees C, 3 min to 150 Degrees C (15 sec), 5 min to 150 Degrees C (30 sec), 7 min to 100 Degrees C
Plug Type
5-15P
Temperature Setting - Minimum
-4 Degrees C
Product Type
Lab Oven
Minimum Side Clearance
4 in
Current
12.5 A
Number of Shelves Included
3
Control Type
Manual
Frequency
50/60 Hz
Timer Duration - Maximum
22 min
Maximum Load Capacity per Shelf
35 lb
Temperature Accuracy Tolerance
+/-3 Degrees C
Temperature Uniformity
+/-3 Degrees C @ 150 Degrees C
Maximum Number of Shelves
14
Color
Gray
Timer Duration - Minimum
7 min
Interior Material
Aluminized Steel
Shelving Type
Wire
Shelf Adjustability
Adjustable
Housing Finish
Powder Coated
Minimum Top Clearance
18 in
Temperature Setting - Maximum
232 Degrees C
Display Type
Analog
Vacuum Pump Required
No
Number of Temperature Settings
1

Description

Lab Oven, Convection Type Forced Air, Temp. Range (C) Ambient 25 Degrees to 232 Degrees , Temp. Range (F) Ambient +25 Degrees to 450 Degrees , Overall Height 29 in, Overall Width 20 in, Overall Depth 14 1/4 in, Temp. Accuracy +/- 6 Degrees F, Chamber Height 14.625 in, Chamber Width 18 in, Chamber Depth 12 in, Amps 12.5 A, Voltage 120V, Watts 1,500 W, Capacity (Cu.-Ft.) 1.83, Capacity (ML) 52,000, Programmable Not Programmable
