  11. 45 ft. 12/3 Extension Cord Reel 20.0 A Amps 1 Outlets 120V AC Voltage
Shop All Combination Hose Reels
Reelcraft

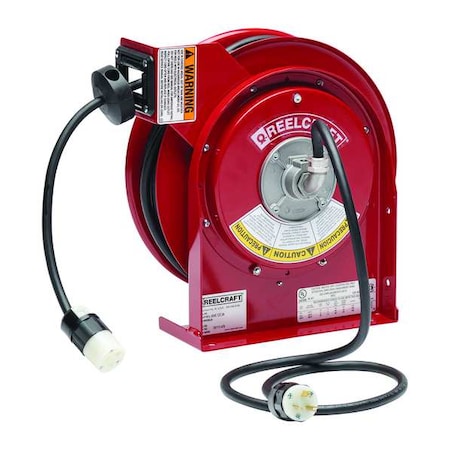

45 ft. 12/3 Extension Cord Reel 20.0 A Amps 1 Outlets 120V AC Voltage

product price: $503.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Winding Method Spring Retraction
  • Voltage 120VAC
  • Tension Method Ratchet Lock
  • Wire Size 12 AWG
  • Retractable Cord Length 45 ft
See all product information

Product Information

Dimensions

Wire Size 12 AWG
Retractable Cord Length 45 ft
Cord Length 45 ft.
Cord Length - Ext. Cords and Outlet Strips 45 ft.
Overall Width 12 5/8 in
Overall Height 13 1/4 in
Overall Depth 9 3/8 in

Details

Item Extension Cord Reel
Winding Method Spring Retraction
Voltage 120VAC
Tension Method Ratchet Lock
Max. Amps 20
Feeder Cord Ending Grounding Plug
Reel Color Red
Cord Color Black
Retractable Cord Ending Single Connector
Feeder Cord Ending Configuration NEMA 5-20P
Enclosure Rating Not Rated
Retractable Cord Ending Configuration NEMA 5-20R
Feeder Cord Ending NEMA Configuration 5-20P
Number of Outlets 1
Max. Amps - Ext. Cords and Outlet Strips 20.0
Slip Ring Rating 20
Cord Included Yes
Cord Ending NEMA Configuration 5-20R
Temp. Range 0 Degrees to 125 Degrees F
Standards CSA, UL
NEC Cord Designation SJEOOW
Grade - Ext. Cords and Outlet Strips Heavy Industrial
Gauge/Conductor 12/3
Grade Heavy Duty
Voltage - Ext. Cords and Outlet Strips 120VAC
Indoor / Outdoor Indoor
NEC Cord Designation - Ext. Cords and Outlet Strips SJEOOW
Watts 2500
Enclosed Reel No
Reel Mounting Bench, Ceiling, Wall
Reel Material Steel
Cord Ending Single Industrial Connector
Gauge/Conductor - Ext. Cords and Outlet Strips 12/3
Trade Designation SJEOOW
Number of Conductors 3
Temp. Rating 0 Degrees to 125 Degrees F
Location Indoor

Description

This Reelcraft 45 ft. 12/3 Extension Cord Reel is the perfect solution for your power needs. It has a retractable cord that you can wind and unwind easily. With a spring retraction, this extension cord reel ensures that the cord will not retract by itself when in use. The ratchet lock tension method gives you better control over the length of cable pulled out. This extension cord has a voltage of 120VAC and comes with a single connector at the end of its 45 ft long wire. It also features an overall height of 13 1/4 in., as well as red color for increased visibility. The Reelcraft 45 ft 12/3 Extension Cord Reel is made to be durable and reliable for all your power needs around the house or workplace.
