  11. Hose Reel 1X50Ft Fuel W/Out Hose
Shop All Combination Hose Reels
Reelcraft

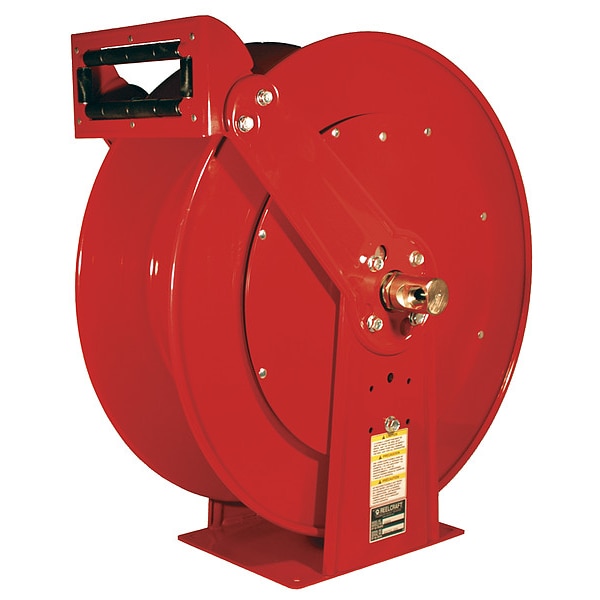

Hose Reel 1X50Ft Fuel W/Out Hose

product price: $730.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Reel Width 15 3/4 in
  • Overall Height 25 5/16 in
  • Swivel Material Nickel Plated Steel
  • Overall Width 15 11/16 in
  • Overall Length 24 in
See all product information

Product Information

Dimensions

Reel Width 15 3/4 in
Overall Height 25 5/16 in
Overall Width 15 11/16 in
Overall Length 24 in
Swivel Inlet Size 1 in
Swivel Outlet Thread Size 1 in - 11 1/2
Mount Base Width 9 3/8 in
Swivel Outlet Size 1 in
Swivel Inlet Thread Size 1 in - 11 1/2
Reel Diameter 15 1/2 in
Mounting Hole Center to Center Width 7 7/8 in
Mount Hole Diameter 1/2 in
Mounting Hole Center to Center Height 10 1/2 in
Overall Dimensions 24 in L x 15 11/16 in W x 25 5/16 in H
Mount Base Height 12 in

Details

Item Spring Return Hose Reel
Swivel Material Nickel Plated Steel
Drive Type Spring Return
Number of Mount Holes 4
Hose Capacity 50 ft (1 in I.D.)
Hose Reel Primary Application Fuel
Weight 84 lb
Twin Hose Compatible No
Enclosed No
Fasteners Included No
Reel Material Steel
Maximum Operating Pressure 500 psi
Includes Leader Hose No
For Dual Hose No
Includes Hose No
Reel Finish Powder Coated
Speed Limited Retraction No
Minimum Operating Temperature -25 Degrees F
Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
Swivel Outlet Gender Female
Base Motion Type Stationary
Number of Guide Arms Double Arm
Pedestal Type Dual Pedestal
Latch Type Spring Loaded
Swivel Outlet Type NPT
Corrosion-Resistant Yes
Maximum Operating Temperature 210 Degrees F
Reel Color Red
Swivel Inlet Gender Female
Bearing Construction Ball
Swivel Inlet Type NPT

Description

Spring Return Hose Reel, Fuel, Maximum Operating Pressure 500 psi, Hose Capacity 50 ft (1 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel, Includes Hose No, Mounting Location Ceiling, Floor, Wall, Pedestal Type Dual Pedestal, Number of Guide Arms Double Arm, Overall Height 25 5/16 in, Overall Length 24 in, Overall Width 15 11/16 in, Reel Material Steel, Reel Finish Powder Coated
