How do Cryogenic Valves Work?

In the world of extreme engineering, few environments are as demanding as those involving cryogenic fluids. When you are dealing with substances like liquid nitrogen at -196°C or liquid helium approaching absolute zero, standard hardware doesn't just fail—it shatters.

Cryogenic valves are the unsung heroes of the aerospace, medical, and energy industries. They are specialized mechanical devices designed to operate reliably under thermal stresses that would turn a standard steel valve into a brittle piece of glass. But how exactly do they keep their composure when things get bone-chillingly cold?

To understand how a cryogenic valve works, you first have to understand the enemies it fights: thermal contraction and heat transfer.

• Brittleness: Most metals become brittle at low temperatures. A standard carbon steel valve subjected to cryogenic temperatures would likely crack the moment it was cycled.
• Expansion & Contraction: Different materials shrink at different rates. If a valve isn't designed for this, internal components can seize or develop massive leaks as the "tight fit" planned at room temperature disappears.

The "Boil-Off" Problem: If heat from the outside world leaks into the valve, the liquid inside will boil into a gas. This causes a massive pressure spike that can be catastrophic.

While they come in various types (gate, globe, ball, or butterfly), most cryogenic valves share a few unique anatomical features that set them apart from their room-temperature cousins.

The Extended Bonnet

This is the most recognizable feature of a cryogenic valve. The "bonnet" is the top part of the valve that houses the stem and the packing (the seal that prevents fluid from leaking out around the handle).

In a cryogenic valve, the bonnet is significantly lengthened. This serves a vital purpose: it keeps the stem seal warm. By moving the packing away from the freezing flow of the liquid, a column of vaporized gas forms in the extension. This gas acts as an insulator, ensuring the seal remains at a high enough temperature to stay pliable and effective.

High-Performance Seals

You won’t find standard rubber O-rings here. Cryogenic valves typically use PTFE (Teflon) or specialized graphite seals. These materials maintain some level of flexibility and low friction even when the mercury drops off the map.

Pressure Relief (Venting)

When a cryogenic liquid is trapped in a closed cavity—like the body of a ball valve—and it begins to warm up, it expands. Liquid-to-gas expansion ratios can be as high as 1:700. To prevent the valve from exploding, cryogenic ball valves often have a small hole drilled into the upstream side of the ball to allow pressure to bleed off safely.

In automated systems where rapid-fire control is needed, we turn to the cryogenic solenoid valve.

Standard solenoids use an electromagnetic coil to move a plunger. However, in cryogenic applications, the coil generates heat, and the moving parts are subject to intense friction without the luxury of oil-based lubricants (which would freeze solid).

Cryogenic solenoid valves are engineered with:

• Specialized Coil Insulation: To prevent electrical failure during thermal cycling.
• Stainless Steel Internals: To ensure structural integrity.
• Zero-Leak Seats: Often using Kel-F or specialized PTFE to ensure that even a single molecule of liquid hydrogen or oxygen doesn't escape.

These are common in satellite propulsion systems and MRI cooling loops, where precise, remote-controlled bursts of cryogenic fluid are a necessity.

Material science is the backbone of cryogenic valve design. Engineers generally stick to the 300-series stainless steels or Teflon-based composites.

Why do we go to all this trouble? Because our modern world runs on the "cold."

1. LNG (Liquefied Natural Gas): To transport natural gas across oceans, it is cooled to -162°C, shrinking its volume by 600 times. Massive cryogenic gate valves control the loading and unloading of these tankers.
2. Aerospace: Rockets use liquid oxygen (LOX) and liquid hydrogen (LH2) as propellant. The valves on a launchpad must work perfectly the first time, every time, under extreme vibration and cold.
3. Medical Imaging: MRI machines require liquid helium to keep their superconducting magnets cold. Cryogenic valves manage the delicate refilling process.

Operating cryogenic valves isn't just about turning a handle. It requires strict safety protocols:

• Degreasing: Any trace of oil or grease inside a valve carrying liquid oxygen can cause a spontaneous explosion. Cryogenic valves must be "Oxygen Cleaned."

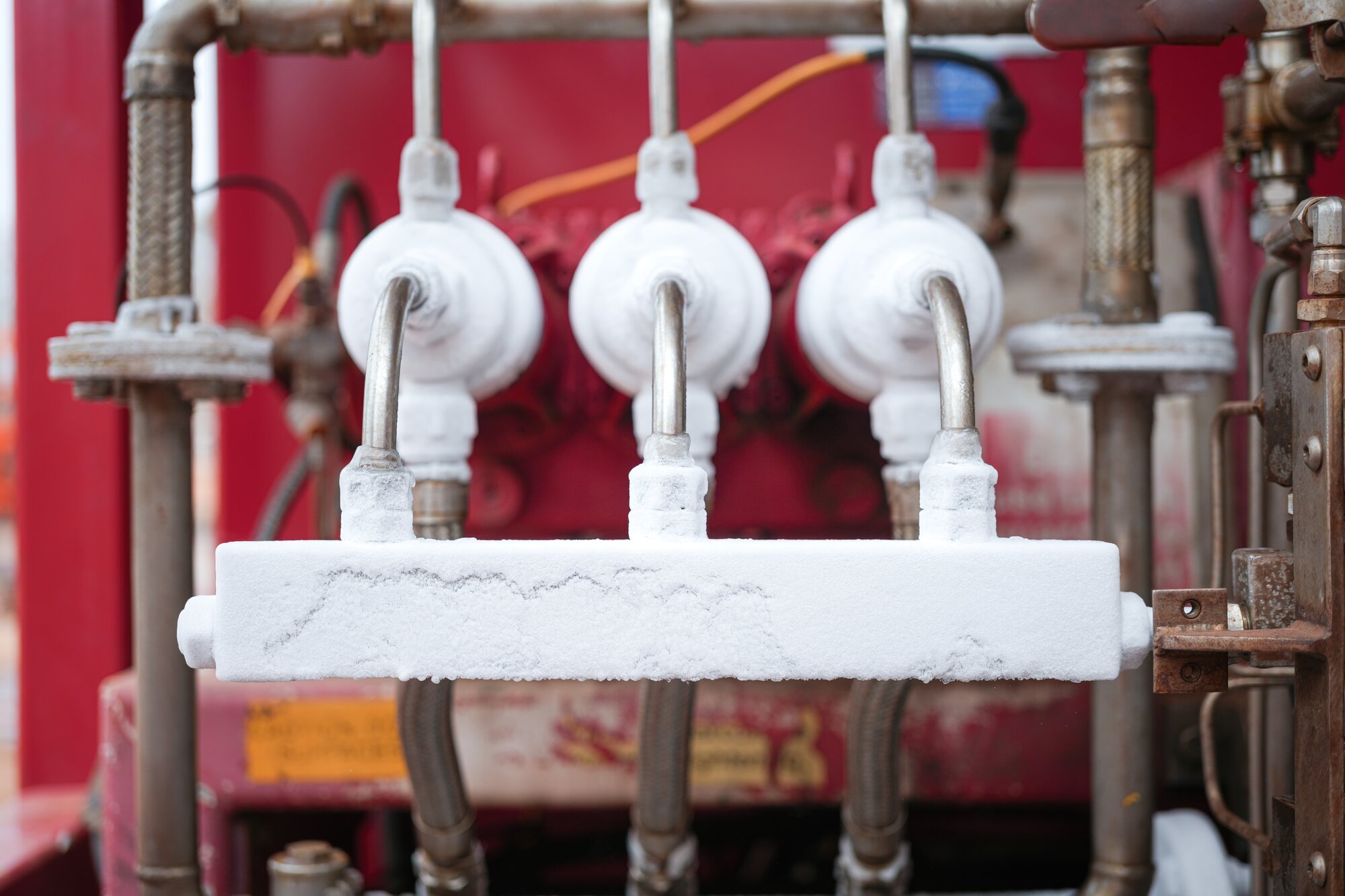

• Ice Buildup: Moisture in the air can freeze on the outside of the valve, potentially seizing the handle. The extended bonnet helps prevent this ice from reaching the critical moving parts.

Cryogenic valves are a masterclass in adapting to one of the harshest environments known to man. By utilizing extended bonnets to manage heat, specialized materials to prevent brittleness, and clever venting to handle pressure, these devices allow us to harness the power of liquefied gases safely.

Whether it’s a massive ball valve on an LNG tanker or a tiny, precise cryogenic solenoid valve on a laboratory line, these components are what keep the wheels of high-tech industry turning—even when they’re frozen solid.
