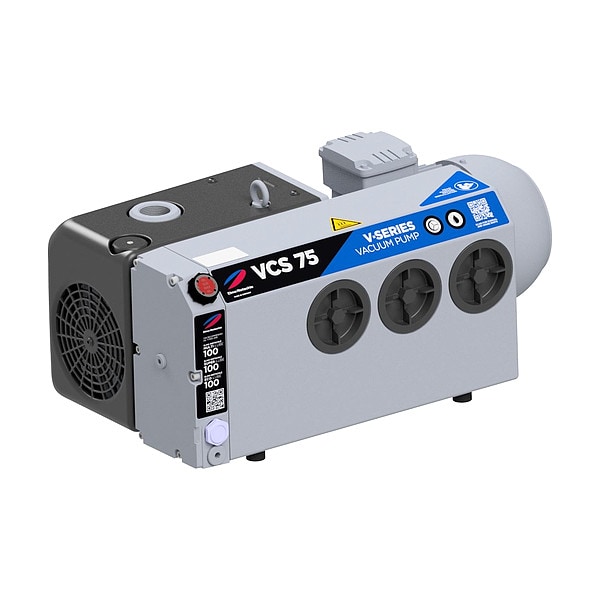

Vacuum Pump, 3 HP, 29.90 In. Hg, 49.0 cfm

RIETSCHLE THOMAS| Zoro #: G1179963| Mfr #: VC-75

$3,955.86 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1179963 Mfr #: VC-75
Includes: Oil, Oil Separator, Filter, Vacuum Non-Return ValveOverall Width: 13-1/8"
Application: For Vacuum Packaging, Vacuum Chucking, Die Casting, Vacuum Thermoforming and Material HandlingMotor Type: TEFC Continuous Duty
Item: Vacuum PumpBallast: Gas
Filter: Fine MeshPhase: 3
Finish: Silver/Gray MetallicHP: 3
Amps AC: 8.4/4.2End Vacuum: 29.90" Hg
NPT Inlet: 1-1/4"Oil Capacity: 96 oz.
Displacement: 49.0 cfmVoltage: 208-230/460
Overall Length: 27-11/16"Overall Height: 10-1/2"
Hz: 60Max. dBA: 68
Country of Origin (subject to change): Germany

Product Description

Vacuum Pump, HP 3, Displacement 49.0 cfm, End Vacuum 29.90 In. Hg, NPT Inlet 1-1/4 In., Voltage 208-230/460, Amps AC 8.5-8.2/4.1, Overall Length 27-11/16 In., Overall Height 10-1/2 In., Overall Width 13-1/8 In., 60 Hz, 3 Phase, Oil Capacity 96 oz., Motor Type TEFC Continuous Duty, Max. dBA 68, Finish Silver/Gray Metallic, Filter Fine Mesh, Ballast Gas, Application for Vacuum Packaging, Vacuum Chucking, Die Casting, Vacuum Thermoforming and Material Handling
