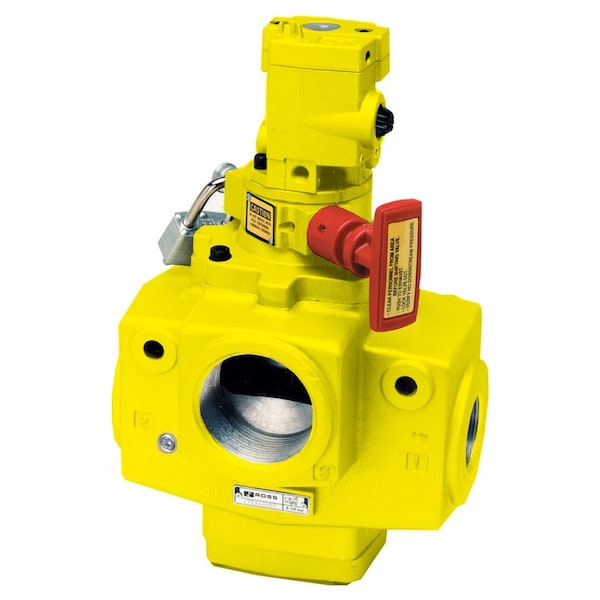

27 Series Lockout L-O-X Valves (CRN)

Registered in Ontario to the ASME B31.3, Process Piping Code - CRN 0C13861.5 Dirt tolerant, wear compensating for quick response and high flow capacity Operated like the manual lockout L-O-X valve, the position of the red handle indicates instantaneous full flow pressurizing or exhausting capability Allows the air supply to be turned on or off by remote electrical control when valve is not in the lockout position Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines Design only allows the valve to be lockable in the OFF position Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity Includes integrated sensor port for pressure verification with either a visual pop-up indicator or electrical pressure switch
