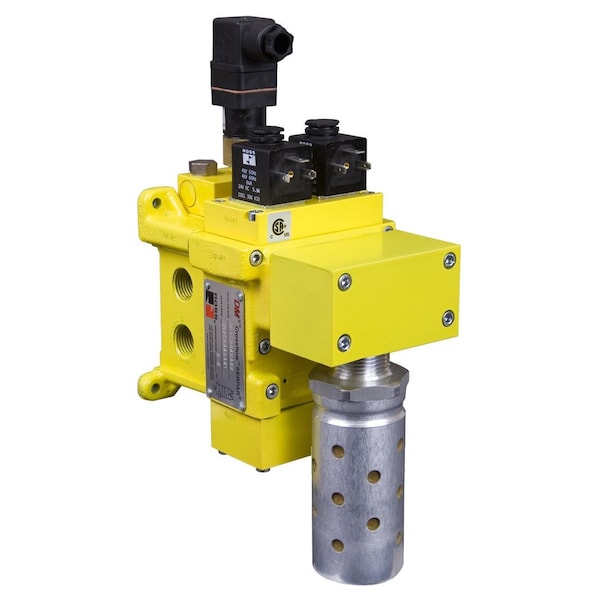

DM1 Series C Double Valve

Redundant control can achieve Category 4, PL e, when used with proper safety controls Dynamic Monitoring and air flow control functions are integrated into two identical valve elements for Category 4 applications. Poppet Design that is dirt tolerant, wear compensating for quick response and high flow capacity PTFE backup piston rings enhances valve endurance enabling operation with or without in-line lubrication If an abnormality clears itself upon the removal of electricity to both solenoids, it will be ready-to-run again. Includes a pressure switch with both normally open (NO) and normally closed (NC) contacts to provide status feedback to the control system indicating whether the valve is in the "ready-to-run" condition or has experienced abnormal function. MUST be integrated into machine controls in order to prevent run signal until fault is cleared in valve. This indicator only reports status, it is not part of a lockout function. Includes high flow, clog resistant silencer Inlet and outlet ports on both sides provide for flexible piping (plugs for unused ports included); captive valve-to-base mounting screws SISTEMA Library available for download
