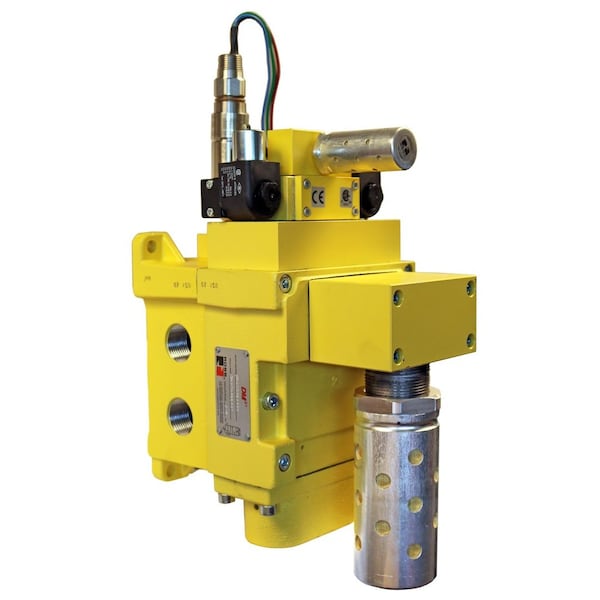

DM2 Series C Safe Exhaust Valve, Explosion Proof

Monitoring, and air flow control functions are simply integrated into two identical valve elements Asynchronous movement of valve elements is detected by the dynamic monitoring and the valve latches in the safe condition, resulting in a residual outlet pressure of less than 1% of supply Reset can only be accomplished by the integrated electrical (solenoid) reset; the valve cannot be reset by removing and re-applying supply pressure Poppet design that is dirt tolerant, wear compensating for quick response and high flow capacity Explosion-proof Coils contain any spark originating from within the coil or housing preventing the ignition of any flammable material in the surrounding environment, resulting in a larger explosion Includes a pressure switch with both normally open (NO) and normally closed (NC) contacts to provide status feedback to the control system indicating whether the valve is in the lockout or ready-to-run condition Inlet and outlet ports on both sides provide for flexible piping (plugs for unused ports included) SISTEMA Library available for download
