  6. Rgd Caster, Poly, 5", 750 lb.

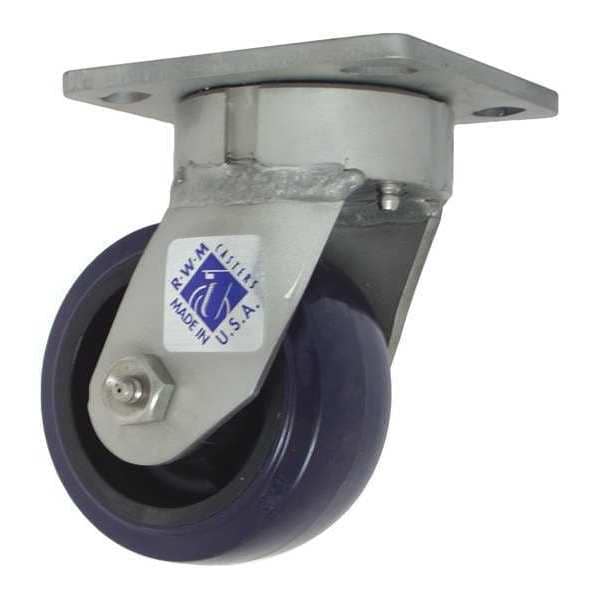

Rwm Rgd Caster, Poly, 5", 750 lb. S65-UPC-0520-R - main

Rgd Caster, Poly, 5", 750 lb.

  • Mfr # S65-UPC-0520-R

  • Zoro # G7467008

product price:  $68.35
/ea

Key Features

Frame Finish
Stainless Steel
Standards
ANSI ICWM, ISO 9001
Caster Brake Included
No
Thread Guards
No
Inside Bolt Hole Spacing
2-5/8 in x 3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S65-UPC-0520-R
Zoro #
G7467008
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
6-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
3/16in

Details

Frame Finish
Stainless Steel
Standards
ANSI ICWM, ISO 9001
Caster Brake Included
No
Thread Guards
No
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Extended Lead
No
Caster Temp. Range Available
Yes
Core Color
Gray
Load Rating
750 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Caster Sub-Type
Rigid
Number of Wheels
1
Non-Marking
Yes
Caster Frame Material
Stainless Steel
Caster Plate Hole Pattern
B
Includes
Complete Caster
Replacement Wheel
Mfr. No. UPC-0520-08
Wheel Color
Blue
Item
Plate Caster
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polyolefin
Wheel Bearing Type
Plain
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UPC-0520-08
Load Capacity - Maximum
750 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
