This item is Discontinued.

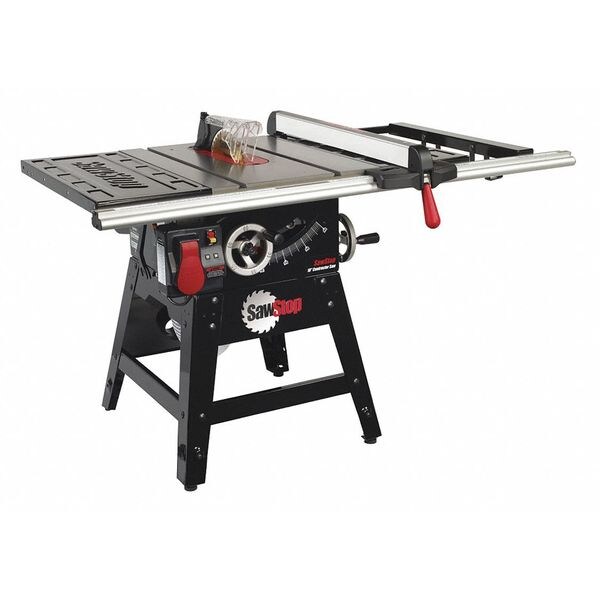

Sawstop Corded Table Saw 10 in Blade Dia., 30 1/2 in CNS175-SFA30

This item is Discontinued.

Sawstop

Corded Table Saw 10 in Blade Dia., 30 1/2 in (Discontinued)

Mfr # CNS175-SFA30
Zoro # G3344909
UPC # 857766003239
Country of Origin Taiwan, Province of China
Category Table Saws & Tile Saws
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CNS175-SFA30
Zoro #
G3344909
UPC #
857766003239
Country of Origin
Taiwan, Province of China

Dimensions

Blade Dia.
10 in
Max. Cut Width Right of Blade
30 1/2 in
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Depth of Cut @ 90 Deg.
3-1/8"
Overall Width
58 1/2 in
Exhaust Port Size
4 in
Overall Height
34 3/4 in
Arbor Size
5/8 in
Overall Depth
40 in
Depth of Cut @ 45 Deg.
2-1/4"
Max. Cut Width Left of Blade
16 1/2 in
Table Width
58 1/2 in
Table Length
27 in
Table Width with Extension
58 1/2 in
Blade Diameter
10 in
Cutting Width Right of Blade - Maximum
30 1/2 in
Cutting Width Left of Blade - Maximum
16 1/2 in
Cutting Depth at 0 Degrees - Maximum
3 1/8 in
Cutting Depth at 45 Degrees - Maximum
2 1/4 in

Details

Item
Table Saw
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Current
14 A
Max. Blade Speed
4,000 RPM
Cutting Capacity Rip Right
30-1/2"
Hz
60
Corded/Banded
Corded
Amps
14.0
Motor HP
1-3/4
No Load RPM
4000
Blade Tilt
Left
Table Front of Blade
10 5/8 in
Cutting Capacity Rip Left
16-1/2"
Corded/Cordless
Corded
Table Surface w/Extension
56 in x 27 in
Phase
Single-Phase
Series
CNS
Horsepower
1.7
Stand Type
Cabinet
Power Source
Corded
Automatic Blade Safety Retraction
Yes
Arbor Shape
Round
Table Saw Type
Cabinet
Variable Speed
No
Amps AC
14
Blade Speed - Maximum
4,000 RPM
Includes Automatic Blade Safety Retraction
Automatic Blade Safety Retraction Included
Speed Control
Single
Power Source - TS Only
Corded

Description

Table Saw, Power Source Corded, Series CNS, Blade Dia. 10 in, Max. Blade Speed 4,000 RPM, Current 14 A, Horsepower 1.7, Arbor Size 5/8 in, Arbor Shape Round, Bevel Angle Range 0 Degrees to 45 Degrees Left, Max. Cutting Depth @ 0 Deg. 3 1/8 in, Max. Cutting Depth @ 45 Deg. 2 1/4 in, Table Saw Type Cabinet, Stand Type Cabinet, Max. Cut Width Right of Blade 30 1/2 in, Max. Cut Width Left of Blade 16 1/2 in, Table Width 58 1/2 in, Table Width with Extension 58 1/2 in, Table Length 27 in

Restrictions

This item has been restricted from sale in the following states: AK, HI
