  12. /
  13. Pilot Light, LED, 24V, Blue
Shop All Indicator Lights
Schneider Electric

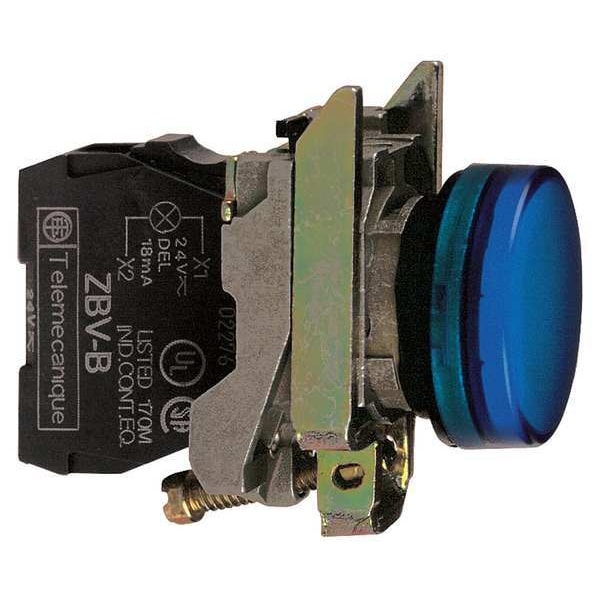

Pilot Light, LED, 24V, Blue

product price: $62.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Blue
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Width 30 mm
Height 47 mm
Length 54 mm
Overall Depth 2.13 in
Overall Width 1.18 in
Overall Height 1.85 in
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo

Details

Item Pilot Light
Voltage 24V AC/DC
Color Blue
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Contact Form (X1-X2)PL
Lens Material Plastic
Bezel Chromium Plated Metal
Lens Type Smooth
Lamp Module Type Full Voltage
Basic Material Metal
Body Material Metal
Standards CSA, REACH, RoHS, UL Listed, WEEE
Lamp Voltage 24V AC/DC
IP Rating IP66, IP67, IP69, IP69K
NEMA Rating 13, 4, 4X
Average Life 100000 hr
Type Steady Signal
Includes Lamp Module Lamp Module Included
Lens Color Blue
Lamp Voltage - Maximum 24 V AC/DC
Voltage Rating - Maximum 24 V AC/DC
NEMA Enclosure Rating 13, 4X
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lamp Color Blue
Includes Push-To-Test No Push-To-Test Included
Series XB4
Includes Lens Lens Included

Description

Pilot Light, Voltage 24V AC/DC, Color Blue, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Smooth, Lamp Voltage 24V AC/DC, Body Material Metal, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Standards CSA, REACH, RoHS, UL Listed, WEEE
