  10. /
  11. Plug-In Relay, 250V, 6A, Rxm + Led, 120V AC Coil Volts, 4 C/O
Shop All Plug-In Relays
Schneider Electric

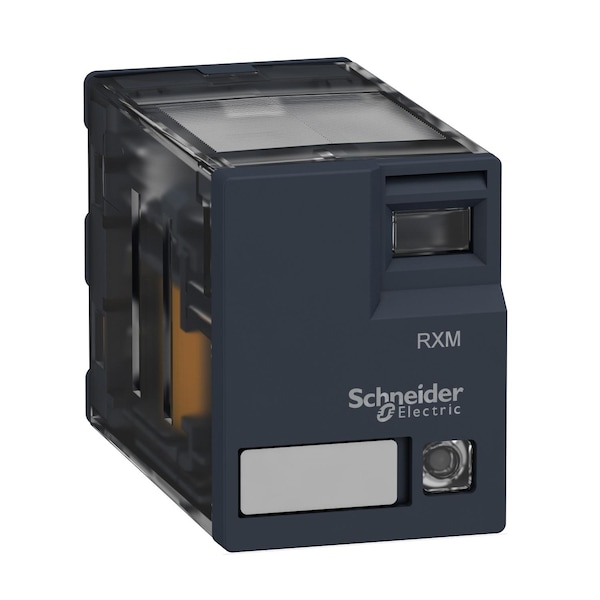

Plug-In Relay, 250V, 6A, Rxm + Led, 120V AC Coil Volts, 4 C/O

product price: $8.79
/pk 10, $0.88/ea
Sold in multiples of 10 for $87.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 120V AC
  • AC Contact Rating - Relay 6A @ 250V AC
  • DC Contact Rating - Relay 6A @ 28V DC
  • Contact Form - Relay 4 C/O
  • Power Consumption - Relay 1.2 VA
See all product information

Product Information

Details

Item Plug-In Relay,250V,6A,Rxm + Led
Coil Volts 120V AC
AC Contact Rating - Relay 6A @ 250V AC
DC Contact Rating - Relay 6A @ 28V DC
Contact Form - Relay 4 C/O
Power Consumption - Relay 1.2 VA
Contact Material AgNi
Features Status LED
Standards UL 508; CSA C22.2 No 14; EN/IEC 61810-1; Lloyd's; GOST; CE
Coil Resistance 4430 Ohm
Pin Shape flat
Dielectric Strength 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation
Operating Time 20 ms
Current Rating 3 A 28 V DC) NC IEC; 3 A 250 V AC) NC IEC; 6 A 28 V DC) NO IEC; 6 A 250 V AC) NO IEC; 6 A 277 V AC) UL; 8 A 30 V DC) UL; 0.208333333333333
Switching Voltage 250 V IEC
Operating Temp. Range -40-55°C
Series RXM; Miniature
Protection Category RT I
Switching Power Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V
Test Levels level A group mounting
Ambient Air Temperature For Storage -40-85°C
Vibration Resistance 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Operating Rate <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Continuous Output Current 5A
Load Current 6 A 250 V AC, 6 A 28 V DC
Rated Operational Voltage Limits 96...132 V AC
Series Name Miniature
Device Short Name RXM
Minimum Switching Capacity 170 mW 10 mA, 17 V
Status Led with
Maximum Switching Capacity 1500 VA/168 W
Operating Position any position
Average Resistance 4430 Ohm 20°C +/- 15 %
Mechanical Durability 10000000 cycles
Average Coil Consumption In VA 1.2-1.2 60 Hz
Electrical Durability 100000 cycles resistive
Average Consumption 1.2 VA 60 Hz
[Ie] Rated Operational Current 3 A 28 V DC) NC IEC, 3 A 250 V AC) NC IEC, 6 A 28 V DC) NO IEC, 6 A 250 V AC) NO IEC, 6 A 277 V AC) UL, 8 A 30 V DC) UL
Pollution Degree 2
Shock Resistance 10 gnin operation, 30 gnnot operating
[Ui] Rated Insulation Voltage 250 V IEC, 300 V CSA, 300 V UL
Ambient Air Temperature For Operation -40-55°C
Ip Degree of Protection IP40 conforming to IEC 60529
Drop-Out Voltage Threshold >= 0.15 Uc
[Uimp] Rated Impulse Withstand Voltage 2.5 kV 1.2/50µs
[Uc] Control Circuit Voltage 120 V AC 50/60 Hz
Control Type without lockable test button
Range of Product Harmony Electromechanical Relays
Device Presentation complete product
Product or Component Type plug-in relay
Utilisation Coefficient 0.2

Description

The RXM range of miniature relays has relays from 2 to 4 poles with 3 to 12A contact ratings. There is a good selection of relays sockets and accessories to choose from. This 4 pole relay has four CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 6 A at 277 Vac and 8 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 120 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
