Schneider Electric Processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet BMXP342020 - main

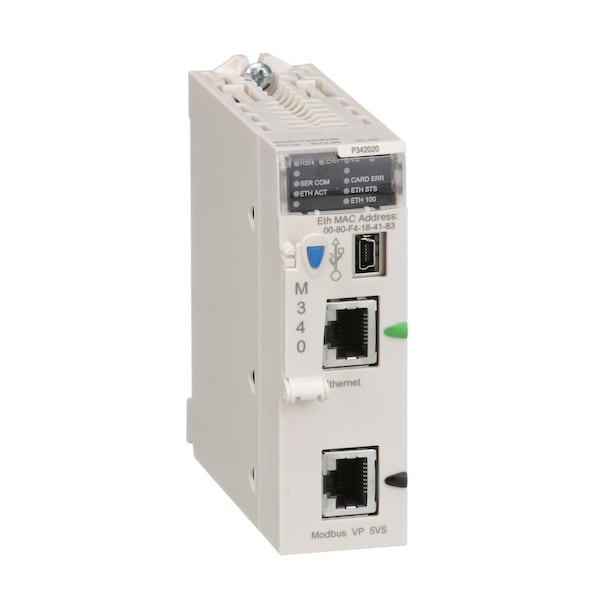

Processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet

  • Mfr # BMXP342020

  • Zoro # G900422947

product price:  $1,917.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Standards
EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Width
4.6"
Height
2.1"
Length
4.8"
Number Of Racks
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BMXP342020
Zoro #
G900422947
UPC #
-
Country of Origin
France

Dimensions

Width
4.6"
Height
2.1"
Length
4.8"
Bus Length
0-10 m serial link non isolated character mode segment || 0-10 m serial link non isolated Modbus segment || 0-1000 m serial link isolated character mode segment || 0-1000 m serial link isolated Modbus segment || 0-15 m character mode point-to-point || 0-15 m Modbus point-to-point
Maximum Tap Links Length
<15 m serial link non isolated character mode segment || <15 m serial link non isolated Modbus segment || <40 m serial link isolated character mode segment || <40 m serial link isolated Modbus segment
Maximum Size Of Object Areas
256 kB unlocated internal data || 32634 %Mi located internal bits
Default Size Of Object Areas
1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits

Details

Item
Processor module M340,max 1024 discrete
Standards
EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Number Of Racks
4
Concept
Transparent Ready || CANopen
Integrated Connection Type
non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3 to 19.2 kbit/s full duplex || non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3 to 19.2 kbit/s half duplex || USB port 12 Mbit/s || Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
Supply
internal power supply via rack
Ambient Air Temperature For Operation
0-60 °C
Product Certifications
CE || UL || CSA || RCM || EAC || Merchant Navy
Environmental Characteristic
hazardous location class I division 2
Number Of Instructions Per Ms
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean
Number Of Application Specific Channel
36
Memory Description
supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data || internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Control Channels
programmable loops
Number of slots
11
Control Parameter
one CRC on each frame (RTU) Modbus || one LRC on each frame (ASCII) character mode || one LRC on each frame (ASCII) Modbus
Execution Time Per Instruction
0.12 µs Boolean || 0.17 µs double-length words || 0.25 µs single-length words || 1.16 µs floating points
Current Consumption
95 mA 24 V DC
Requests
1 K data bytes per request character mode || 252 data bytes per RTU request Modbus || 504 data bytes per ASCII request Modbus
Analogue I/O Processor Capacity
256 I/O multi-rack configuration || 66 I/O single-rack configuration
Protective Treatment
TC
Marking
CE
Number Of Devices
2 point-to-point character mode || 2 point-to-point Modbus
Port Ethernet
10BASE-T/100BASE-TX
Discrete I/O Processor Capacity
1024 I/O multi-rack configuration || 704 I/O single-rack configuration
Number Of Devices Per Segment
0-32 character mode) || 0-32 Modbus)
Relative Humidity
10-95 % without condensation
Status Led
1 LED (Green) activity on Ethernet network (ETH ACT) || 1 LED (Green) processor running (RUN) || 1 LED (Green) status of Ethernet network (ETH STS) || 1 LED (Red) data rate (ETH 100) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Red) memory card fault (CARD ERR) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Yellow) activity on Modbus (SER COM)
Communication Module Processor Capacity
2 Ethernet communication module || 4 AS-Interface module
Communication Service
bandwidth management, Ethernet TCP/IP || Data Editor, Ethernet TCP/IP || Modbus TCP messaging, Ethernet TCP/IP || Rack Viewer, Ethernet TCP/IP || SNMP network administrator, Ethernet TCP/IP
Monitoring
diagnostic counters Modbus || event counters Modbus
Product Or Component Type
processor module
Number Of Addresses
0-248 character mode || 0-248 Modbus
Ip Degree Of Protection
IP20
System Overhead
0.13 ms fast task || 0.7 ms master task
Application Structure
1 cyclic/periodic master task || 1 periodic fast task || no auxiliary task || 64 event tasks
Range of Product
Modicon M340 automation platform

Description

Processor module M340,max 1024 discrete
