Schneider Electric

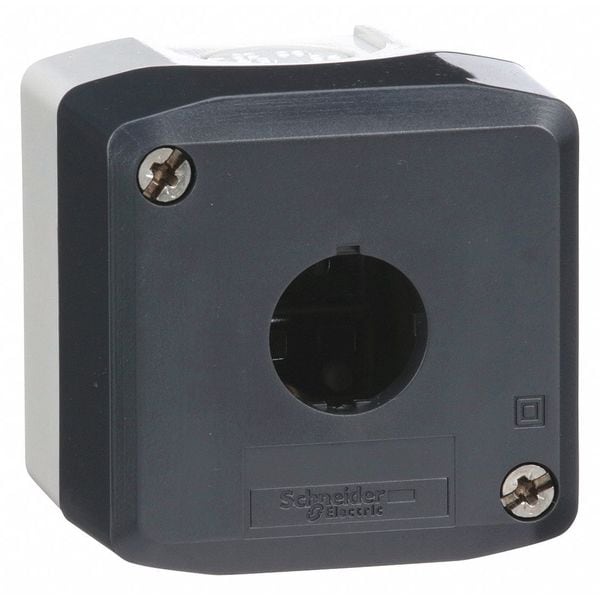

Pushbutton Enclosure, 2.68 in., Plastic

product price: $29.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head
  • Color Gray
  • Material Polycarbonate
  • Height 2.68 in
  • Width 2.68 in
See all product information

Product Information

Dimensions

Height 2.68 in
Width 2.68 in
Hole Size 22 mm
Conduit Size No Conduit Entrance Holes Provided
Depth 2 in
Dimensions 2.68 in H x 2.68 in W x 2.00 in D
Overall Height 2 11/16 in
Panel Cutout Diameter 22 mm
Overall Width 2 11/16 in
Compatible Conduit Size - Maximum 14 mm
Overall Depth 2 1/16 in

Details

Item Push Button Enclosure
For Use With ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head
Color Gray
Material Polycarbonate
Number of Holes 1
Number of Columns 1
NEMA Rating 1, 12, 13, 4X
Standards RoHS
Group Of Product UL-CSA grey
Mounting Of Block rear mounting || front mounting
Ambient Air Temperature For Operation -40-70°C
Nema Degree Of Protection NEMA 13 || NEMA 4X
Overvoltage Category class II IEC 60536
Product Destination for XB5 Ø 22 mm control and signalling units
Electrical Composition Code MF2 || MF1 || MR1 || PR1 || SF1 || SR2 || SR1 || PF1 || PF2 || SF2
Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Certifications UL || CSA
Main Group 1 cut-out
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Number Of Vertical Rows 1
Colour Of Cover dark grey RAL 7016)
Ambient Air Temperature For Storage -40-70°C
Number Of Cut-Out 1 cut-out
Cable Entry 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Device Short Name XALD
Product Or Component Type empty control station
Ik Degree Of Protection IK03 EN 50102
Protective Treatment TH
Number Of Horizontal Rows 1
Colour Of Base Of Enclosure light grey RAL 7035)
Compatible with Series XB5
NEMA Enclosure Rating 13, 4X

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 1, NEMA Rating 1, 12, 13, 4X, Conduit Size No Conduit Entrance Holes Provided, Dimensions 2.68 in H x 2.68 in W x 2.00 in D, Hole Size 22 mm, Material Polycarbonate, Height 2.68 in, Width 2.68 in, Depth 2 in, Color Gray, For Use With ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head, Standards RoHS
