- Item

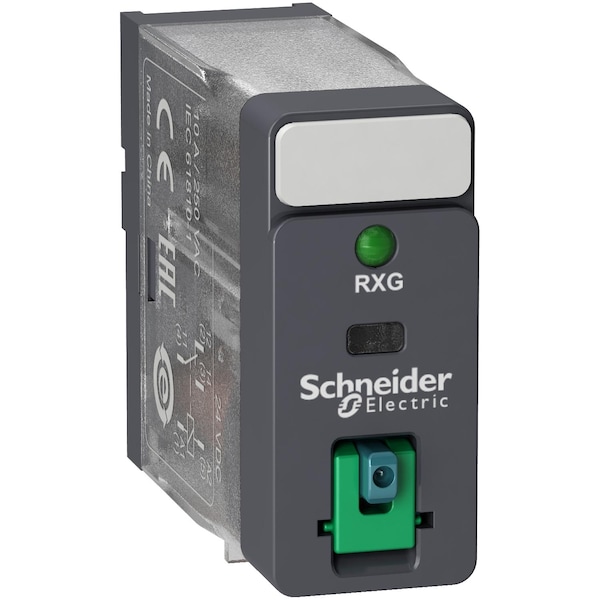

- Relay 1Co 10A,250VAC,24VDC,Coil Led+Ltb
- Current Rating
- 10 A 30 V DC) UL; 10 A 30 V DC) IEC; 10 A 250 V AC) IEC; 10 A 250 V AC) UL
- Contact Material
- Silver Alloy (AgSnO2In2O3)
- Standards
- IEC 61810-1; CSA C22.2 No 14; UL 508; CE; EAC; DNV-GL
- Contact Form - Relay
- 1 C/O
- Features
- Lockable Test Button; Flag Signalling; Status LED
- Mounting - Relay
- Any Position
- Coil Volts
- 24V DC
- AC Contact Rating - Relay
- 10A @ 250V AC
- Operating Temp. Range
- -40-70°C
- Switching Power
- Max 2500 VA; Min 500 mW at 100 mA, 5 V DC
- Coil Resistance
- 1100 Ohm
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation
- Series
- RXG; interface relay
- Operating Time
- 20 ms
- Switching Voltage
- 250 V AC/30 V DC
- Protection Category
- RT I
- Ambient Air Temperature For Operation
- -40-70°C
- Pollution Degree
- 2
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Load Current
- 10 A 250 V AC
- Local Signalling
- flag
- Electrical Durability
- 100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
- Shock Resistance
- 20 gn in operation, 100 gn not in operation
- Resistance
- 1100 Ohm +/- 10 %
- [Uc] Control Circuit Voltage
- 24 V DC
- Minimum Switching Capacity
- 500 mW at 100 mA, 5 V DC
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55°C
- Relative Humidity
- 10-85 %
- Status Led
- with
- Ambient Air Temperature For Storage
- -40-85°C
- Series Name
- interface relay
- Test Levels
- level A group mounting
- Insulation Resistance
- 1000 MOhm at 500 V DC
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Colour of Cover
- standard
- Product or Component Type
- plug-in relay
- Ip Degree of Protection
- IP40
- Control Type
- lockable test button
- Operating Rate
- <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
- Torque Value
- 0.8 N.m
- Device Short Name
- RXG
- Maximum Switching Voltage
- 250 V AC, 30 V DC
- Utilisation Coefficient
- 0.2
- Overvoltage Category
- III
- Mechanical Durability
- 10000000 cycles
- [Ie] Rated Operational Current
- 10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL
- Range of Product
- Harmony Electromechanical Relays
- Vibration Resistance
- 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Maximum Switching Capacity
- 2500 VA
