  6. 3" X 1-1/4" Non-Marking Rubber Thermoplastic Swivel Caster, Top Lock Brake, Loads Up To 210 lb

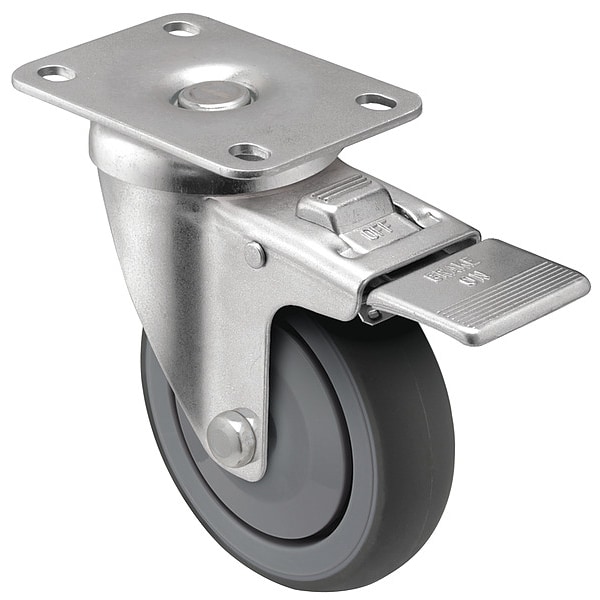

Shepherd Hardware 3" X 1-1/4" Non-Marking Rubber Thermoplastic Swivel Caster, Top Lock Brake, Loads Up To 210 lb PGT30120ZN-TPR33(GG) - main

3" X 1-1/4" Non-Marking Rubber Thermoplastic Swivel Caster, Top Lock Brake, Loads Up To 210 lb

  • Mfr # PGT30120ZN-TPR33(GG)

  • Zoro # G7810987

product price:  $31.89
/ea

Key Features

Number of Wheels
1
Application
Store Fixtures, Storage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Caster Frame Material
Steel
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-40 to 180 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PGT30120ZN-TPR33(GG)
Zoro #
G7810987
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
4-1/4 in
Wheel Width
1 1/4 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
For Axle Dia.
3/8 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Hub Length
1 5/8 in
Swivel Radius
4 3/8 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Length
3 in
Inside Slot Spacing - Length
2.75 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 5/8 in
Mounting Plate Width
2 1/2 in

Details

Number of Wheels
1
Application
Store Fixtures, Storage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Caster Frame Material
Steel
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-40 to 180 Degrees F
Load Rating
210 lb
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Frame Color
Silver
Caster Sub-Type
Swivel
Includes Thread Guards
Yes
Non-Marking
Yes
Swivel Lock Type
Total Lock
Number of Mounting Holes
4
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Standards
RoHS
Wheel Core Type
Solid
Caster Stem Type
Top Plate
NSF Listed
No
Core Color
Black
Swivel Raceway Type
Precision Ball
Load Rating Range
0 to 299 lb
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
Series
Institutional
Wheel/Tread Material
Rubber
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Features
High Strength Steel, Raceway Dust Cap
ESD Conductive
No
Tread Shape
Standard
Wheel/Tread Color
Grey
Item
Swivel Caster with Total Lock
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Core Material
Polyolefin
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
210 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Face

Description

Swivel, Plate Caster, Load Rating 210 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
