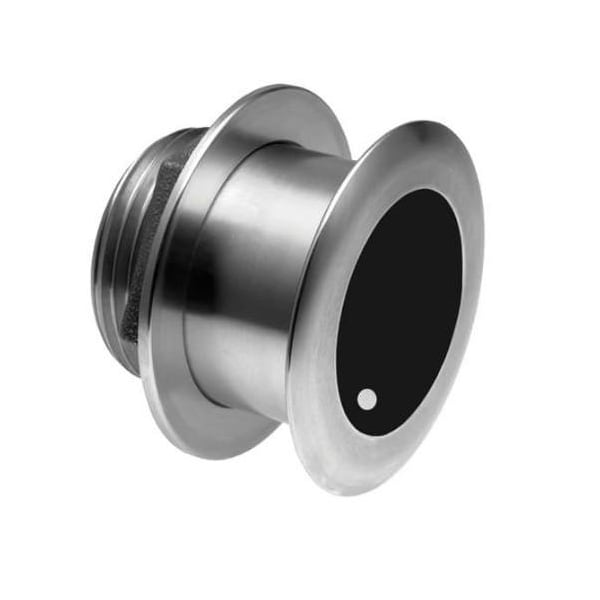

, Xsonic Ss175H-W/20 Stainless Steel 20 Degree: Black 9 Pin Connector: Cable Length 10 M 33.0 Ft

Get more coverage under your boat with Airmarfts unique wide beam, high frequency CHIRP-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 deg beam for all frequencies. The high frequency band results in superior resolution. The constant wide beam width provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500 ft. Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.
