Sloan Valve 3325400 G2 RESS-C 1.6 or 3.5 GPF Retrofit Kit

product price: $707.99
/ea
Free Shipping & Returns
$707.99
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Basic Power Source Battery
  • Flush Mode Single
  • Gallons per Flush 1.6/3.5 gpm
  • Standards ADA
  • Valve Design Diaphragm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 4-1/4 in

Details

Basic Power Source Battery
Flush Mode Single
Gallons per Flush 1.6/3.5 gpm
Standards ADA
Valve Design Diaphragm
Fixture Type Water Closet
Material Semi-red Brass
Fixture Mount Wall
Fixture Connection Top
Finish Polished Chrome
Exposed/Concealed Exposed
Pressure Range 15 to 80 psi

Description

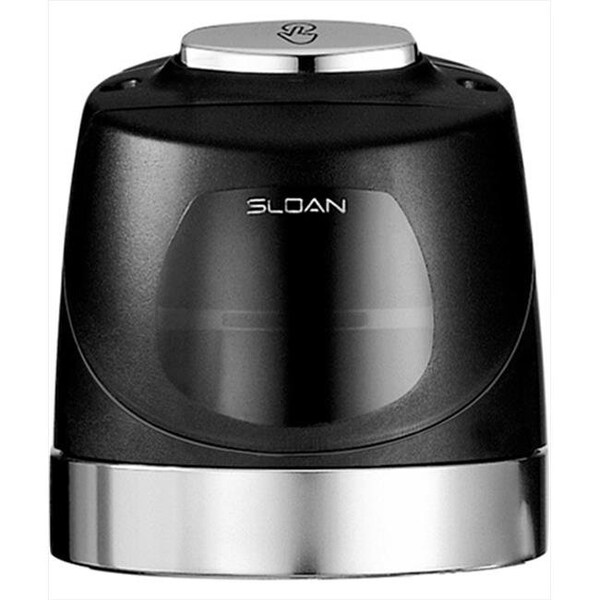

Quiet, Exposed, OPTIMA Plus, Battery Powered, Sensor Operated Closet Flushometer Retrofit Conversion Kit for Sloan Royal, Sloan and Regal Flushometers with the following features:
  • Battery Powered, Sensor Operated G2 Model Retrofit Conversion Kit for Exposed Closet Flushometers.
  • 1.6 or 3.5 Gallons Per Flush.
  • For Toilets.
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass.
  • Flex Tube Diaphragm designed for improved life and reduced maintenance.
  • ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation.
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection.
  • Latching Solenoid Operator.
  • Engineered Metal Cover with replaceable Lens Window.
  • User friendly three (3) second Flush Delay.
  • Courtesy Flush Override Button.
  • Four (4) Size AA Batteries factory installed.
  • “Low Battery” Flashing LED.
  • Infrared Sensor Range Adjustment Screw.
  • Initial Set-up Range Indicator Light (first 10 minutes).
  • Chrome Plated Metal Handle Cap.
  • Installation Tools provided.
  • Diaphragm to be molded from PERMEXTM Rubber Compound for Chloramine resistance.

    • Restrictions
