Solberg

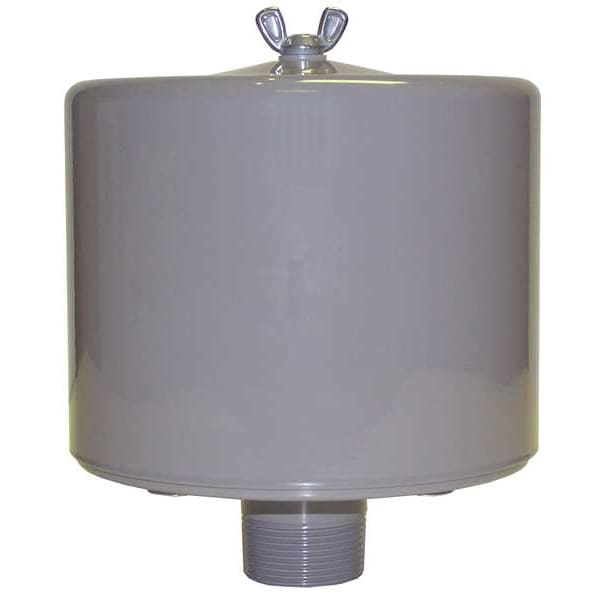

Filter Silencer, 1 (M)NPT, 55 Max CFM

product price: $61.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Outlet (In.) 1 in (M)NPT
  • Max. Flow (CFM) 55 cfm
  • Filter Rating (Microns) 5 micron
  • Noise Reduction Rating NRR (dB) 5 to 15
  • Dia. (In.) 6 in
See all product information

Product Information

Dimensions

Dia. (In.) 6 in
Height (In.) 6 5/8 in
Nipple Length (In.) 1 1/2 in
Nipple Length 1.5 in
Outside Diameter 6 in
Outlet Size 1 in
Overall Height 6.62 in

Details

Outlet (In.) 1 in (M)NPT
Max. Flow (CFM) 55 cfm
Filter Rating (Microns) 5 micron
Noise Reduction Rating NRR (dB) 5 to 15
Item Filter Silencer
Filter Media Polyester
Temp. Range (F) -15 Degrees to 220 Degrees F
Design Filter Silencer
Filter Efficiency (%) Over 99%
Housing Material Carbon Steel
Filtered Substance Particulate
Minimum Operating Temperature -15 Degrees F
Connection Style Screw On
Filter Rating 5 micron
Maximum Operating Temperature 220 Degrees F
Number of Air Outlets 1
Outlet Type MNPT
Filter Material Polyester
Maximum Flow Rate 55 cfm
Filtration Efficiency 99 %
Series FS

Description

Item Filter Silencer, Connection Style Screw On, Design Hood, Filter Material Polyester, Filter Rating 5 micron, Filtered Substance Particulate, Filtration Efficiency 99 Percent, Housing Material Carbon Steel, Maximum Flow Rate 55 cfm, Maximum Operating Temperature 220 Degrees F, Minimum Operating Temperature -15 Degrees F, Nipple Length 1.5 in, Number of Air Outlets 1, Outlet Size 1 in, Outlet Type MNPT, Outside Diameter 6 in, Overall Height 6.62 in, Series FS
