  11. Pneumatic Oil Filter, 2 In. FNPT, 200 cfm

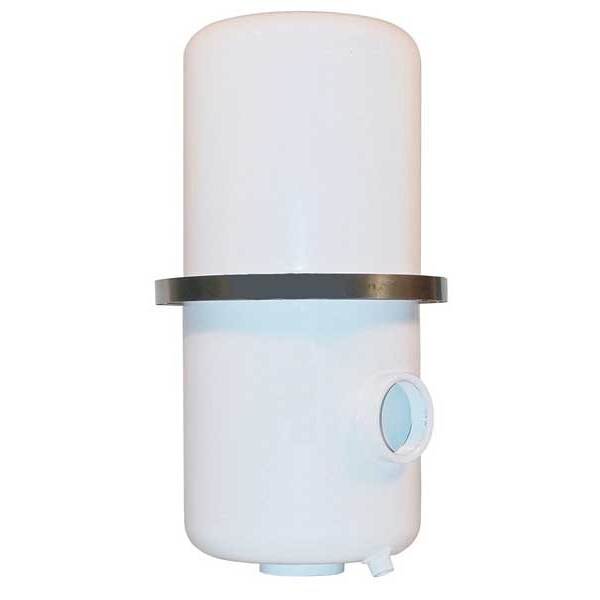

Solberg Pneumatic Oil Filter, 2 In. FNPT, 200 cfm HDL-PSG860/1-200HC - main

Pneumatic Oil Filter, 2 In. FNPT, 200 cfm

  • Mfr # HDL-PSG860/1-200HC

  • Zoro # G1829177

product price: $712.99
/ea
Free Shipping & Returns

Key Features

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Connection Size - Air Treatment
2 in NPT
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
200 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HDL-PSG860/1-200HC
Zoro #
G1829177
UPC #
-
Country of Origin
United States

Dimensions

Connection Size - Air Treatment
2 in NPT
Size - Air Treatment
Subcompact
Drain Port Size
2 in FNPT
Overall Height
17 1/2 in
Overall Width
8 3/4 in
Air Outlet Size
2 in
Air Inlet Size
2 in
Inlet Size
2 in
Outside Diameter
7 5/8 in
Outlet Size
2 in

Details

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
200 cfm
Bowl Material - Air Treatment
Steel
For Removal Of
Oil Aerosols, Particles, Water
Bowl Material
Carbon Steel
Housing Material
Carbon Steel
Drain Type
Manual
Filter Rating
0.3 micron
Max. Temp.
68 Degrees to 180 Degrees F
Item
Pneumatic Oil Filter
Max. Pressure
14.7 psi
Differential Pressure Indicator Included
No
Air Inlet Type
NPSC
For Fluid Type
Oil
Filter Bowl Material
Steel
Body Material
Carbon Steel
Drain Included
Yes
Series
HDL
Number of Air Outlets
1
Minimum Operating Temperature
68 Degrees F
Filter Type
Coalescing
Maximum Flow Rate
175 cfm
Number of Air Inlets
1
Air Outlet Type
NPSC
Maximum Operating Pressure
5 psi
Weight
30 lb
For Substance Type
Oil
Maximum Operating Temperature
180 Degrees F
Filter Efficiency
99.97 %
Type
Vacuum Pump
Gauge Included
No
Maximum Air Flow
175 scfm
Filter Element Material
Polyester
Inlet Type
NPSC
Filtration Efficiency
99.97 %
Outlet Type
NPSC
Application
Any Application Requiring Low Delta P Coalescing of Large Air Volumes, Blower Exhaust Oil Mist, Captures Oil Fog, Mist, or Smoke from Exhaust on Oil Flooded Vacuum Pumps, Cement, Food Processing-Pressure, Industrial Vacuum Processes, Nailers/Staplers, Oil Removal for Pressure Unloading Vents on Piston Compressors, Paper Processing, Vacuum Coating, Vacuum Freeze Dry, Vacuum Outgassing

Description

Pneumatic Oil Filter, Outside Diameter 7 5/8 in, Inlet Size 2 in, Inlet Type NPSC, Outlet Size 2 in, Outlet Type NPSC, Maximum Air Flow 175 scfm, Type Vacuum Pump, Filter Rating 0.3 micron, Filtration Efficiency 99.97 Percent
