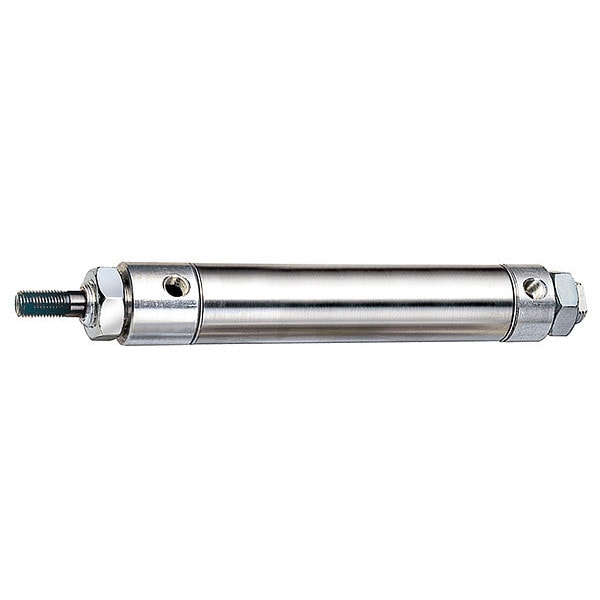

Air Cylinder, 2 1/2 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # 5MME5
Zoro # G1273212
product price:Â $149.99
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Bore Dia.
2 1/2 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.625 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5MME5
Zoro #
G1273212
UPC #
190735632697
Country of Origin
United States
Dimensions
Bore Dia.
2 1/2 in
Rod Dia.
0.625 in
Overall Length
10.94 in
Rod Thread Length
7/8 in
Pivot Hole Dia.
0.376 in
Port Size
1/4 in FNPT
Dimension N1
1 3/8"-12
Rod Thread Size
1/2"-20
Dimension Cb
0.75 in
Dimension Cd
0.376 in
Dimension Kk
1/2"-20 UNF
Dimension D
0.50 in
Dimension Cc
0.625 in
Dimension L
0.56 in
Dimension E
0.75 in
Dimension B
1.50 in
Air Cylinder Bore Dia.
2 1/2 in
Dimension A
22/25 in
Stroke Length
4 in
Inlet Size
1/4 in
Overall Height
10 15/16 in
Nose Mount Thread Size
1 3/8"-12
Bore Diameter
2 1/2 in
Rod Diameter
5/8 in
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Nose, Pivot, Bore Diameter 2 1/2 in, Cushion Type None, Stroke Length 4 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Body Material Finish Silver Plated, Piston Rod Material Finish Chrome Plated, Mounting Location Front, Overall Height 10 15/16 in
