  11. Air Motor, 0.45 HP, 27 cfm, 6000 rpm
Shop All Air Motors
Speedaire

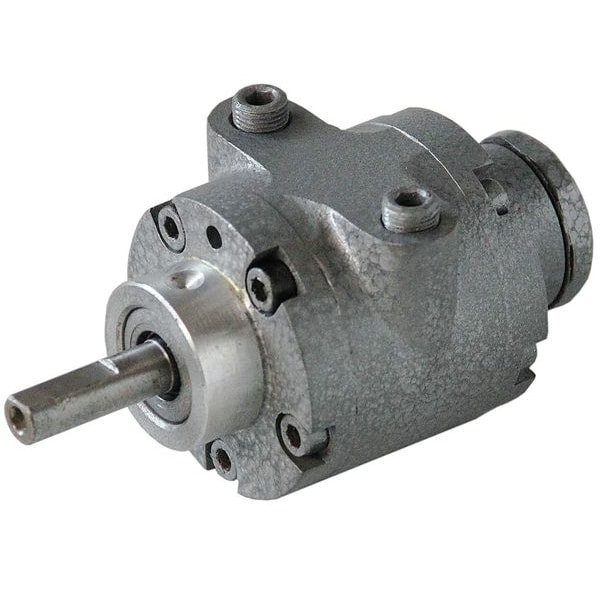

Air Motor, 0.45 HP, 27 cfm, 6000 rpm

product price: $156.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 5.25 in-lb
  • Max. Air Flow 27 cfm
  • HP 0.45 hp
  • No Load RPM 6,000 RPM
  • Shaft Dia. 3/8 in
See all product information

Product Information

Dimensions

Shaft Dia. 3/8 in
Port Size 1/8 in NPT
Overall Length 4 3/4 in
Overall Width 2 1/2 in
Shaft Length 1 1/8 in
Overall Height 2 1/4 in
Outside Diameter 2 1/2 in
Inlet Size 1/8 in
Shaft Diameter 3/8 in
Manufacturers Warranty Length 1 yr

Details

Item Air Motor
Running Torque @ Max. Pressure 5.25 in-lb
Max. Air Flow 27 cfm
HP 0.45 hp
No Load RPM 6,000 RPM
Mounting Hub
Rotation CW
Operating Temp. Range 0 Degrees to 250 Degrees F
RPM @ Max. Torque 1,000 RPM
Max. Air Pressure 80 psi
Includes Muffler
Finish Gray
Housing Material Cast Iron
Mount Type Hub
Weight 1.76 lb
Minimum Flow Rate 3.17 cfm
Maximum Torque 5.25 in-lb
Shaft Material Grade 42CrMo
System of Measurement Inch
Speed @ Maximum Torque 1,000 RPM
Air Inlet Center to Center Distance 1 3/4 in
Air Inlet Type NPT
Air Consumption 27 cfm
Mounting Orientation Any Angle
Maximum Operating Pressure 80 psi
Inlet Gender Female
Output Power @ Maximum Speed 0.45 hp
Maximum Ambient Temperature 250 Degrees F
Motor Frame Material Cast Iron
Shaft Material Alloy Steel
Shaft Orientation Inline
Minimum Operating Pressure 1.4 bar
Nameplate Speed 500 RPM
Maximum Flow Rate 27 cfm
No Load Speed 10,000 RPM
Minimum Ambient Temperature 0 Degrees F
Housing Material Finish Painted
Number of Vanes 8

Description

Air Motor, Output Power @ Maximum Speed 0.45 hp, Maximum Torque 5.25 in-lb, No Load Speed 10,000 RPM, Maximum Flow Rate 27 cfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW, Housing Material Cast Iron, Shaft Material Grade 42CrMo, Bearing Protection Not Applicable, Maximum Operating Pressure 80 psi, Includes Muffler, Keyway Width Not Applicable, Weight 1.76 lb, Housing Material Grade Not Applicable
