Specifications
Product Information
- MFR #
- H224DS
- Zoro #
- G810375524
- UPC #
- -
- Country of Origin
- Unknown
Dimensions
- Height
- 29 in (736.60 mm)
- Depth
- 8.88 in (225.55 mm)
- Width
- 17.75 in (450.85 mm)
- Wire Size
- AWG 6 to 250 kcmil copper or aluminium
Details
- Item
- Single Throw Safety Switch
- Current Rating
- 200 A
- Phase
- 3 phase
- Fuse Type
- H or K; R or J
- Electrical Connection
- Lugs
- Disconnect Type
- Fusible disconnect
- Short-Circuit Current
- 10 kA for H or K; 200 kA for R or J
- Motor Power HP
- 15 hp at 240 V AC 50-60 Hz for 1 phase motors; 25 hp at 240 V AC 50-60 Hz for 3 phase motors; 60 hp at 240 V AC 50-60 Hz for 3 phase motors; 40 hp at 250 V DC
- Certifications
- UL listed file E2875
- Tightening Torque
- 275 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.3 to 127 mm²) (AWG 6 to 250 kcmil)
- Factory Installed Neutral
- None
- Device Application
- Heavy application
- Enclosure Rating
- NEMA 4/4X/5 stainless steel 304
- Wiring Configuration
- 2-wire
- Voltage Rating
- 250 V DC; 240 V AC
- Number Of Poles
- 2
- Mounting Type
- Surface
- Duty Rating
- Heavy duty
Description

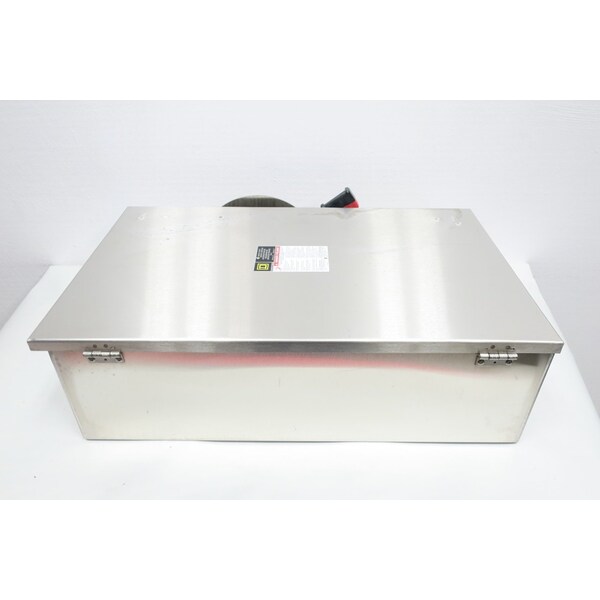

SQUARE D H224DS
