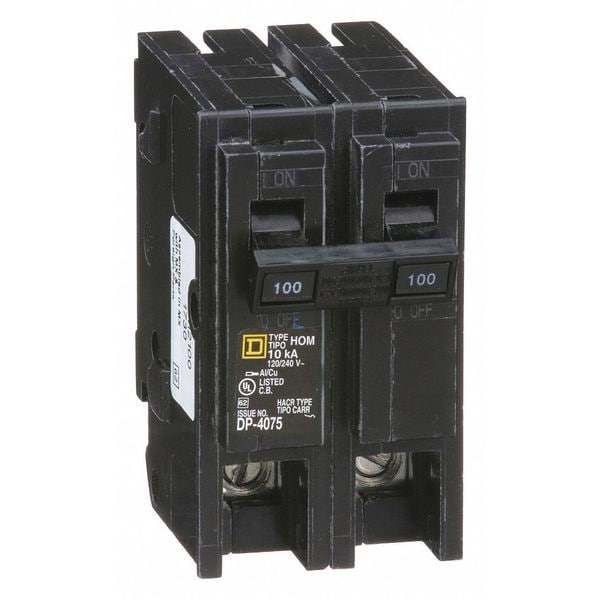

Square D Miniature Circuit Breaker, HOMELINE Series, 100A, 2 Pole, 240V AC, 10kA at 240V AC HOM2100 - main

Miniature Circuit Breaker, HOMELINE Series, 100A, 2 Pole, 240V AC, 10kA at 240V AC

  • Mfr # HOM2100

  • Zoro # G1049054

CAD Available
product price:  $62.69
/ea

Key Features

CAD Drawing
Series
HOMELINE
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HOM2100
Zoro #
G1049054
UPC #
785901065753
Country of Origin
Mexico

Dimensions

Frame Size
100A/HOM
Width
2 in
Depth
2.98 in
Height
3.13 in
Max. Wire Size
2 AWG
Min. Wire Size
4 AWG
Length
3.13 in

Details

Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
100A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 240V AC
Trip Type
Standard
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
CSA Certified, HACR, UL Listed
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Application
HACR rated Applications
Features
Mercury Free
Compatible Panelboard/Load Center Series
HOM
Min. Operating Temp.
77 Degrees F
Voltage
120/240 VAC
CAD Available
Yes

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 100A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
