This item is Discontinued.

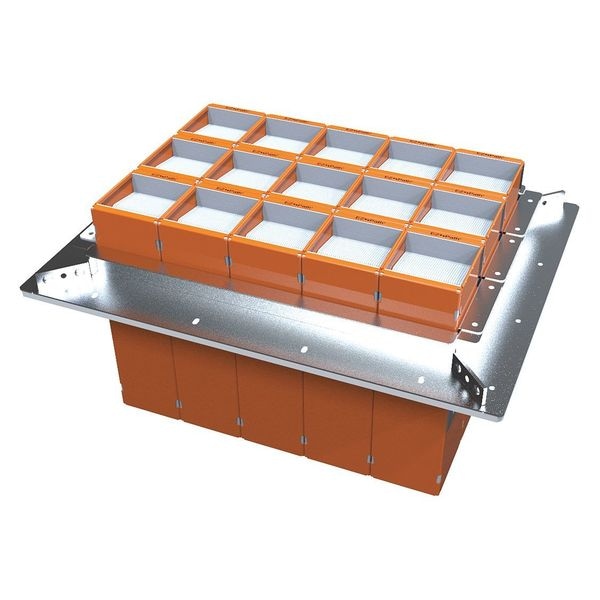

Sti Fire Barrier Pathway, Silver, 29" W EZDG1644S2

Fire Barrier Pathway, Silver, 29" W (Discontinued)

  • Mfr # EZDG1644S2
  • Zoro # G5567996
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EZDG1644S2
Zoro #
G5567996
UPC #
730573001127
Country of Origin
United States

Dimensions

Overall Length
14 in
Overall Width
29 in
Overall Height
23.5 in

Details

Item
Fire Barrier Pathway
Color
Silver
Material
Steel
Fire Rating
1 hr, 1 to 2 hr, 2 hr, 3 hr, 30 min, 4 hr, Not Rated
Standards
ASTM E814 (UL 1479), CAN/ULC-S115, UL Certified
Usage Location
Fire-Rated Walls and Floors
Expansion Temperature
350 Degrees F
Shape
Rectangular
Includes
(16) Series 44 Devices, Gaskets, Labels, Mounting Kit
For Use On
Cable, Cable Trays
Features
Built-In Fire and Smoke Sealing System that Automatically Adjusts to the Amount of Cables Installed
Fire Resistance Type
Intumescent
Minimum Service Temperature
-10 Degrees F
Body Material Finish
Galvanized
Paintable
Yes
Maximum Service Temperature
120 Degrees F
Expansion Volume
15X
Body Material
Steel
Includes Mounting Hardware
Yes
Cable Loading Area
12.66 sq in
Firestop Type
Pass Through Devices for Walls and Ceilings
Resistance Properties
resisting the passage of smoke and flame

Description

Fire Barrier Pathway, Cable Loading Area 12.66 sq in, Fire Rating 1 hr, 1 to 2 hr, 2 hr, 3 hr, 30 min, 4 hr, Not Rated, For Pipe Size Not Applicable, For Use On Cable, Cable Trays, Includes (16) Series 44 Devices, Gaskets, Labels, Mounting Kit, Includes Mounting Hardware Yes, Outside Diameter Not Applicable, Overall Height 23.5 in, Overall Length 14 in, Overall Width 29 in, Shape Rectangular, Usage Location Fire-Rated Walls and Floors, Body Material Steel, Body Material Finish Galvanized
