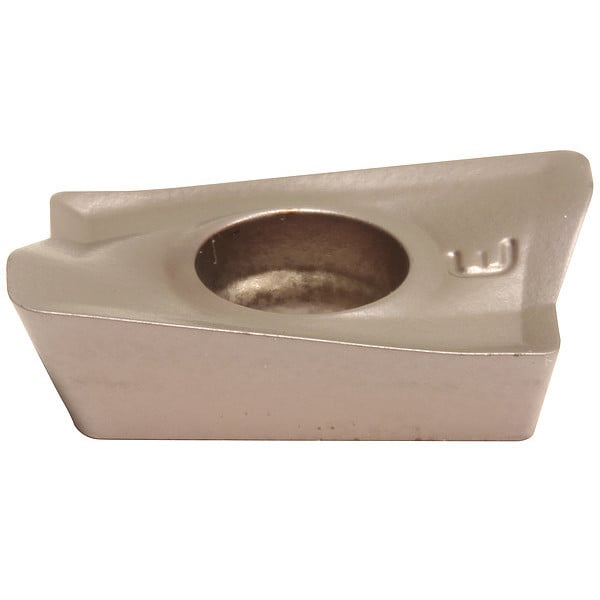

Milling Insert, Parallelogram, 17.00mm

Mfr # AXMT170512PEERG-ACP300
Zoro # G0607192

19.49

Sold in multiples of 10 for $194.90

Key Features

Chip-Breaker

Yes

Cutting Direction

Right Hand

Super Alloy (S) Compatibility

ANSI Number

AXMT170512PEERG-ACP300

Insert Shape

Parallelogram

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AXMT170512PEERG-ACP300
Zoro #: G0607192
UPC #: -
Country of Origin: Japan

Dimensions

Insert Thickness: 0.219"
Insert Size: 170512
Nose Radius: 0.047"
Cutting Edge Length: 17.00mm
Depth of Cut: 14.00mm
Width: 0.4020 in
Thickness: 0.219 in
Corner Radius: 3/64 in

Details

Chip-Breaker: Yes
Cutting Direction: Right Hand
Super Alloy (S) Compatibility: No
ANSI Number: AXMT170512PEERG-ACP300
Insert Shape: Parallelogram
Insert Application: Roughing
Mounting Style: Screw-On
Insert Style: AXMT
No. of Edges: 2
Coating: PVD
Steel (P) Compatibility: No
Insert Material: Carbide
Item: Parallelogram Milling Insert
Lead Angle: 0 Degrees
Inscribed Circle: 0.180 in
Rake: Positive
Workpiece Compatibility: Stainless (M), Steel (P)
Stainless (M) Compatibility: No
For Use With: Shoulder Milling Cutters
Non Ferrous (N) Compatibility: No
Hardened (H) Compatibility: No
Grade: ACP300
Cast Iron (K) Compatibility: No
ISO Number: AXMT170512PEERG-ACP300
Number of Cutting Edges: 2
Wiper Insert: Yes
Primary Material Application ISO Code: P
Features: Excellent Balance of Fracture and Wear Resistance
Secondary Material Application: Stainless Steel
For Toolholder: WEX3040F, WEX3050F, WEX3063F, WEX3080F, WEX3100F
Measurement System: Metric
Coating Process: PVD
Finish - Machining: TiAlN+AlCrN
Manufacturer Grade: ACP300
Cutting Application: Roughing
Insert Holding Type: Screw-On
Shape: Parallelogram
Chip-Breaker Style: Single Sided
Hole Type: Countersink Hole
Included Angle: 85 Degrees
ANSI Code: AXMT170512PEERG-ACP300
Secondary Material Application ISO Code: M
Clearance Angle: 11 Degrees
Primary Material Application: Steel
Material - Machining: Carbide
Chip-Breaker Code: G

Description

Parallelogram Milling Insert, Inscribed Circle 0.180 in, Positive, AXMT170512PEERG-ACP300, G, Single Sided, 11 Degrees
