This item is Discontinued.

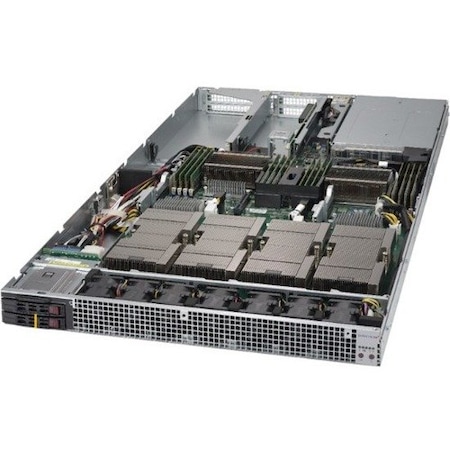

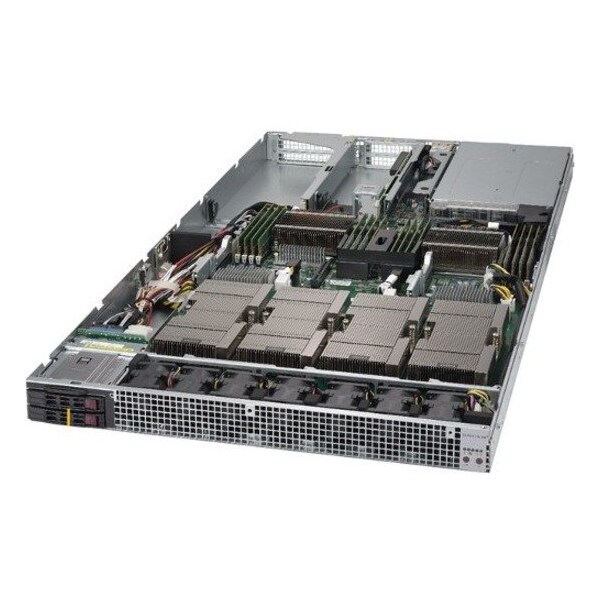

Supermicro Superserver 1028Gq-Tvrt - Rack-Mountable - No Cpu - 0 Gb - SYS-1028GQ-TVRT

This item is Discontinued.

Supermicro

Superserver 1028Gq-Tvrt - Rack-Mountable - No Cpu - 0 Gb - (Discontinued)

Mfr # SYS-1028GQ-TVRT
Zoro # G309572915
UPC # 672042315208
Country of Origin China
Category Servers
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYS-1028GQ-TVRT
Zoro #
G309572915
UPC #
672042315208
Country of Origin
China

Dimensions

Width
17.2 in
Height
1.7 in
Depth
39.3 in
Rack Height
1U

Details

Item
Server Barebone System
Input Voltage
230V AC, 120V AC
Power Supply
2000 W
Includes
1 x Super X10DGQ Motherboard, 1 x CSE-118GQP-R2K05B Chassis, 1 x AOM-PIO-I2XT, 1 x AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS, 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD, 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG, 1 x PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG, 10A/pin, 0~80C, RoHS/REACH, 1 x GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG, 8A/pin, -25~85C, RoHS/REACH, 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG,RoHS, 2 x GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG, 8A/pin, -25~85C, RoHS/REACH, 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS, 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH, 1 x RSC-G-68, 1 x 1U GPU Riser Card with 2 PCI-E x16 slot, 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB, 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers, 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU, 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH, 7 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan, 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
Color
Black
Memory Standard
DDR4-2400/PC4-19200
Controller Type
Serial ATA/600
Green Environmental Attribute
Environmentally Friendly
Number of PCI Express x16 Slots
3
Processor Supported
Xeon
Graphics Controller Model
AST2400
Number of USB 3.0 Ports
2
Mounting
Rack
Number of Expansion Slots
4
Chipset Manufacturer
Intel
Ethernet Technology
10 Gigabit Ethernet
Number of Processors Supported
2
RAID Supported
Yes
Number of PCI Express x8 Slots
1
Processor Socket
Socket R3 LGA-2011
Number of USB Ports
2
Graphics Controller Manufacturer
ASPEED
Chipset Model
C612
Max. Memory Supported
1 TB
Number of Power Supplies Installed
2
Number of SATA Interfaces
6
64-bit Processing
Yes
Number of Memory Slots
16
Memory Technology
DDR4 SDRAM
Number of Total Expansion Bays
4
