This item is Discontinued.

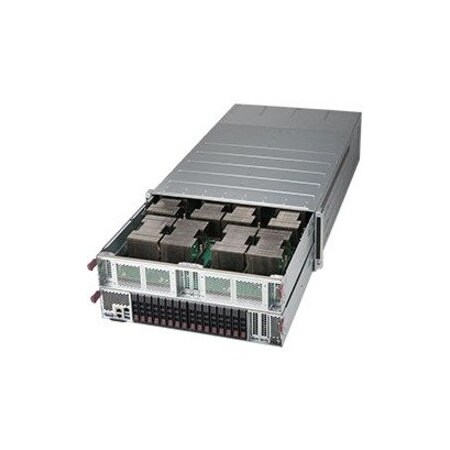

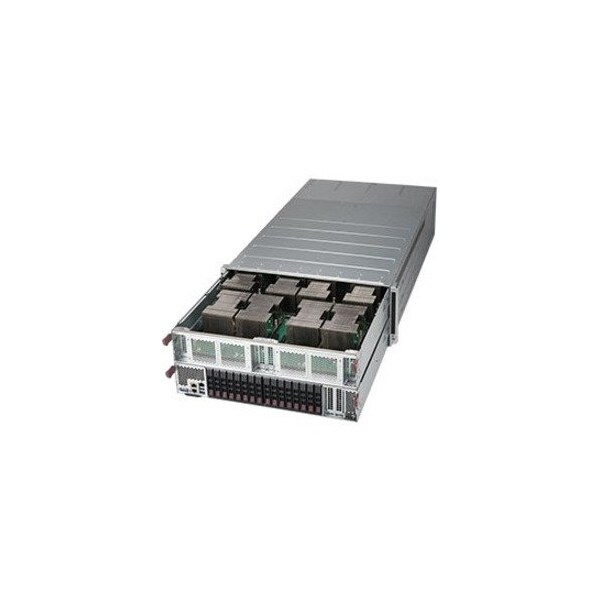

Supermicro Superserver 4028Gr-Tvrt - Rack-Mountable - No Cpu - 0 Gb - SYS-4028GR-TVRT

This item is Discontinued.

Supermicro

Superserver 4028Gr-Tvrt - Rack-Mountable - No Cpu - 0 Gb - (Discontinued)

Mfr # SYS-4028GR-TVRT
Zoro # G109572924
Country of Origin China
Category Servers
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYS-4028GR-TVRT
Zoro #
G109572924
UPC #
-
Country of Origin
China
Item
Server Barebone System
Input Voltage
230V AC, 120V AC
Power Supply
2200 W
Color
Black
Includes
1 x Super X10DGO-T Motherboard, 1 x CSE-R422BG Chassis, 1 x Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS, 1 x 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices, 4 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH, 3 x 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG, 2 x MINI SAS HD,12G,INT,25CM,30AWG, 2 x OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH, 2 x OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG, 4 x 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc,, 4 x 12Vdc input redundant FAN module power supports I2C function, 2 x 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32, 8 x 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers
Chipset Model
C612
Processor Socket
Socket R3 LGA-2011
64-bit Processing
Yes
Green Environmental Attribute
Environmentally Friendly
Number of SATA Interfaces
10
Number of PCI Express x8 Slots
2
Number of Expansion Slots
6
Number of Processors Supported
2
Mounting
Rack
RAID Supported
Yes
Number of USB Ports
2
Ethernet Technology
10 Gigabit Ethernet
Graphics Controller Manufacturer
ASPEED
Max. Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600
Number of Power Supplies Installed
4
Memory Standard
DDR4-2400/PC4-19200
Number of PCI Express x16 Slots
4
Processor Supported
Xeon
Number of Total Expansion Bays
16
Number of USB 3.0 Ports
2
Number of Memory Slots
24
Chipset Manufacturer
Intel
Graphics Controller Model
AST2400
