This item is Discontinued.

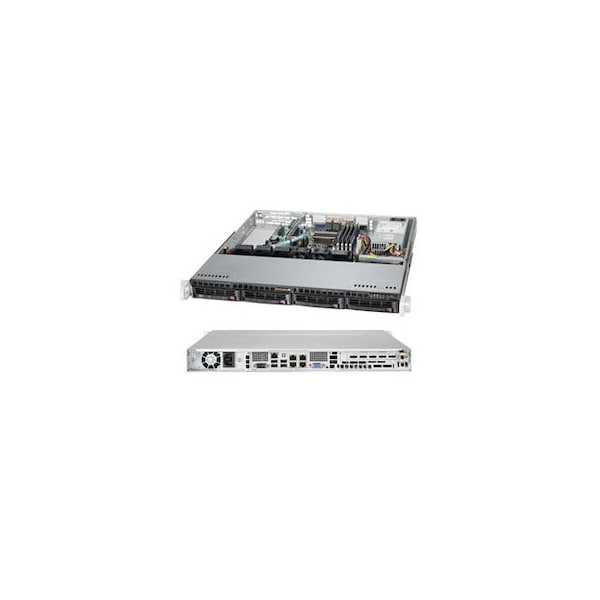

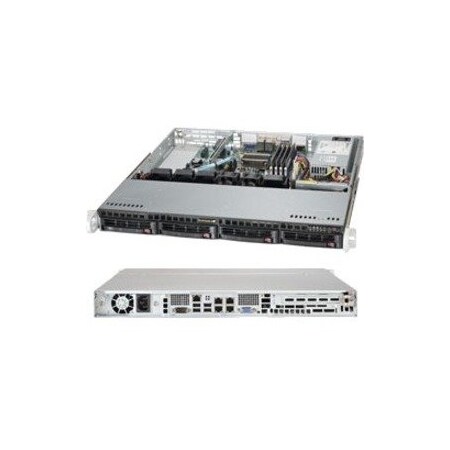

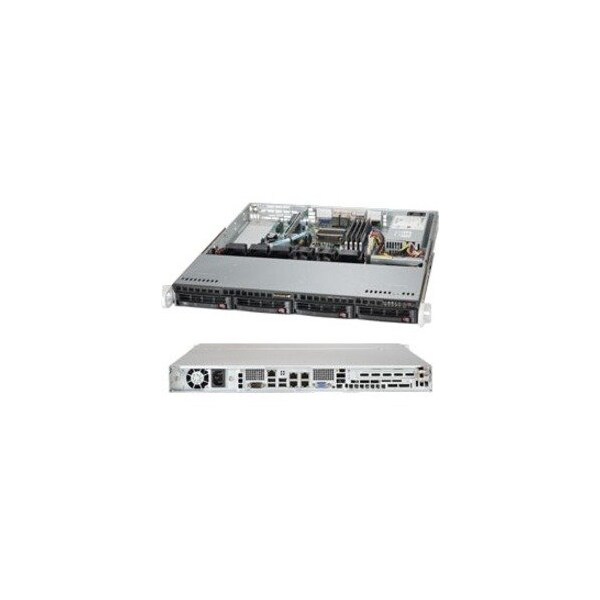

Supermicro SY-518AHN4 SuperServer Intel Atom C2758 200W 1U RackmountServer SYS-5018A-MHN4

This item is Discontinued.

Supermicro

SY-518AHN4 SuperServer Intel Atom C2758 200W 1U RackmountServer (Discontinued)

Mfr # SYS-5018A-MHN4
Zoro # G6254237
UPC # 672042153992
Country of Origin Unknown
Category Terminal Servers
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYS-5018A-MHN4
Zoro #
G6254237
UPC #
672042153992
Country of Origin
Unknown
Voltage
230V AC, 120V AC
Features
64-bit Processing; Environmentally Friendly; Network (RJ-45); Remote Management; VGA
Color
Black
Standards
ACPI 5.0
Includes
(1) Super A1SRM-2758F Motherboard, (1) 1U Chassis, (1) BPN-SAS-815TQ-O-P, (1) SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG, (1) RSC-RR1U-E8 (Rev 4.00), (1) 200W,1U W/ STANDARD HARNESS OUTPUT LC, (1) ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30, (2) 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M, (4) Black 3.5, (1) Outer rail, screw type, 25.6\" to 33.05\", (1) Inner rail, extension (screw) for 1U 17.2, (1) Inner rail, front, short, screw type, (1) Riser card bracket for slot-7 in SC504
Maximum Memory Supported
64 GB
Number of 3.5" Bays
4
Memory Technology
DDR3 SDRAM
Mounting
Rack
Processor Speed
2.40 GHz
Number of USB Ports
7
Processor Type
Atom
Number of Processors Installed
1
Ethernet Technology
Gigabit Ethernet
Processor Core
Octa-core (8 Core)
Cache
4 MB
Number of Power Supplies Installed
1
Controller Type
Serial ATA/600, Serial ATA/300
Power Supply
200 W
Number of USB 2.0 Ports
7
Item
Server
Number of Total Memory Slots
4
Number of Total Expansion Bays
4
Number of Memory Slots
4
Network (RJ-45)
Yes
Processor Manufacturer
Intel
Graphics Controller Model
AST2400
64-bit Processing
Yes
Graphics Controller Manufacturer
ASPEED
Remote Management
Yes
Max. Power Supply Wattage
200 W
VGA
Yes
Green Environmental Attribute
Environmentally Friendly
Hyper-Threading
No
Max. Memory Supported
64 GB

Description

SuperServer SYS-5018A-MHN4 Intel Atom C2758 200W 1U Rackmount Server Barebone System (Black)
