  11. Outdoor Horn Strobe, Two-Wire, Red, Wall Mounting, Standard Candela, 2.5 in Depth x 4.7 in Width
This item is Discontinued.

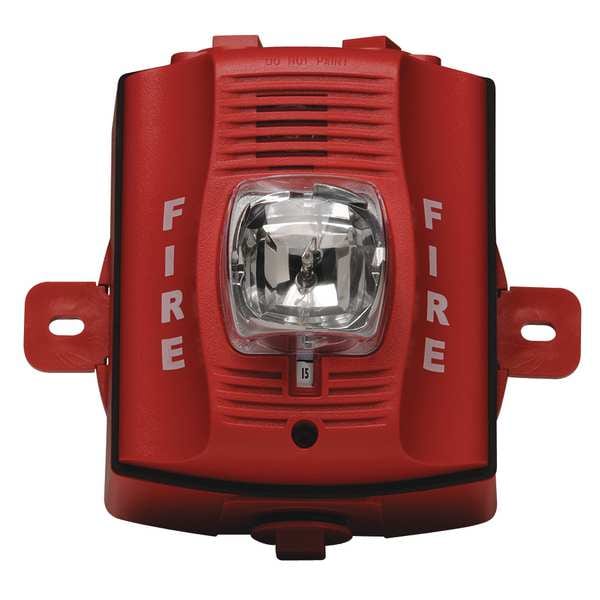

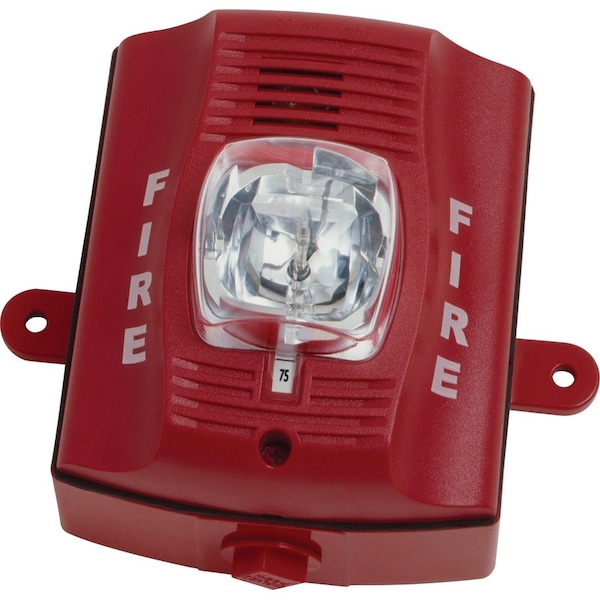

System Sensor Outdoor Horn Strobe, Two-Wire, Red, Wall Mounting, Standard Candela, 2.5 in Depth x 4.7 in Width P2RK

Outdoor Horn Strobe, Two-Wire, Red, Wall Mounting, Standard Candela, 2.5 in Depth x 4.7 in Width (Discontinued)

  • Mfr # P2RK
  • Zoro # G4390915
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2RK
Zoro #
G4390915
UPC #
783863028199
Country of Origin
Mexico

Dimensions

Width
4.7"
Depth
2.5"
Overall Length
5 19/32 in
Overall Width
5 19/32 in
Overall Depth
2 1/2 in

Details

Item
Horn Strobe
Type
Two-Wire
Standards
ULC Listed
Mounting
Wall
Voltage
12/24V
Includes
Mounting Plate
For Use With
Fire Alarm Panel
Flash (Candela)
15-115 cd Selectable
Alarm Current
88ma-218ma (DC Max)
Humidity Range (% RH)
10-93% RH
Peak Output (dBA)
88 dBA
Finish
Red
Ambient Temp. Limits (F)
-40 Degrees to 151 Degrees F
Product Type
Horn and Strobe
Application
Outdoor, Fire
Features
Plug-In Design with Minimal Intrusion into the Backbox, Rotary Switch for Horn Tone and Three Volume Selections, Tamper-Resistant Construction, Universal Mounting Plate with an Onboard Shorting Spring that Tests Wiring Continuity Before Devices are Installed
Control Protocol
Direct Wire
Housing Color
Red
Light Intensity
0 cd, 15 cd, 30 cd, 75 cd, 95 cd, 110 cd, 115 cd, 135 cd, 150 cd, 177 cd, 185 cd
Operating Temperature - Maximum
151 Degrees F
Sound Style
Horn
Lens Color
Clear
NEMA Rating
NEMA 4X
Connection Type
Wire Leads
IP Rating
IP56
Includes Mounting Hardware
Mounting Hardware Included
Power Source
Wire
Light Operating Mode
Strobe
Operating Temperature - Minimum
-40 Degrees F
Legend
FIRE
Operating Voltage
12/24V

Description

Outdoor Horn Strobe, Two-Wire, Finish Red, Wall Mounting, Alarm Current 88ma-218ma (DC Max), Peak Output (dBA) 88, Flash (Candela) 15-115 Selectable, Depth (In.) 2-1/2, Height (In.) 5-5/8, Length (In.) 4-3/4, Width (In.) 4-3/4, Ambient Temp. Limits (F) -40 to 151 Degrees , Humidity Range ( Percent RH) 10-93, Voltage 12-24VDC, Includes Universal Mounting Plate, For Use With Fire Alarm Panel
