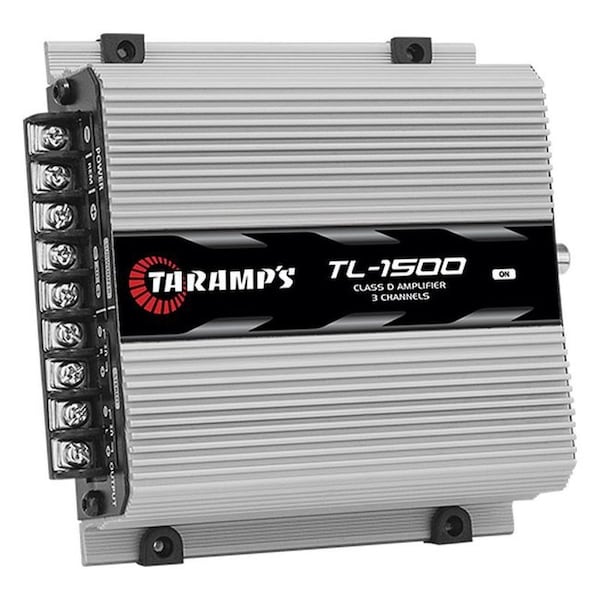

Three Channel High Power Car Audio Amplifier w/Sub Output and Bass Boost 390 Watts Max

The main use of amplifiers TL line is to increase the power of internal systems, keeping the originality of each configuration. It is a line of amplifiers of various designs - 1 channel Mono; 2 channels Stereo; 3 channels 2 channels for medium and severe acute well-defined and specific channel 1 for severe sub - that turn your vehicle's interior into a true sound performance, offering maximum musical quality and high performance.Number of Channels - 03 13.8 VDC Maximum power 1 x 200 W RMS Sub 4 OHMS + 2 x 95 W RMS Stereo 2 ohms Input Sensitivity RCA input = 160mV = 1.5V Hilo input Total Harmonic Distortion THD - 0.05% Signal / Noise -> 90dB Damping Fator -> 300 Frequency Response Sub Output: 15Hz to 100Hz with cutting frequency active 12dB / 8th Outputs Stereo L / R: 100Hz to 30KHz with cutting frequency active 12dB / 8th Bass Boost - Adjustable from 0 to 10dB 50Hz Efficiency Stage Output -> 90% Input Impedance - 22K ohms RCA 1K OHMS Hilo Protection System - output short circuit / thermal protection minimum supply voltage - 8VDC maximum supply voltage - 16VDC Consumption Standby: 1 Amp 13.8VDC Musical consumption Maximum - 18 Amp. Consumption em Up Signal sinusoidal 1KHz 13.8VDC - 36 Amp. Dimensions WxHxD - 134 x 42 x 188mm Weight - 0.83Kg
