This item is Discontinued.

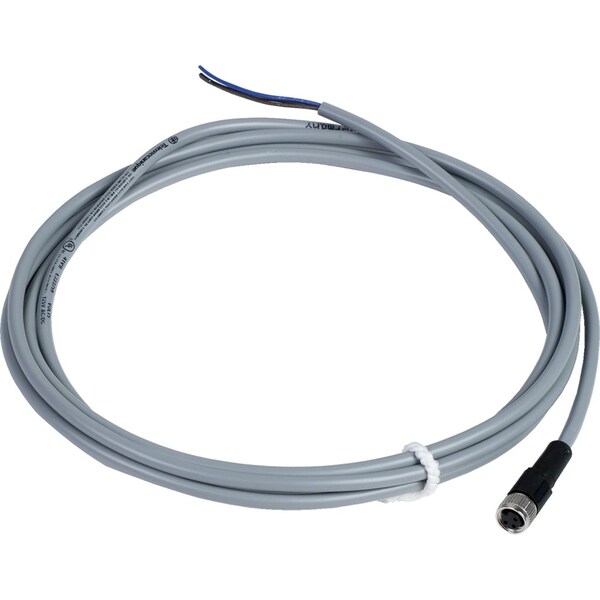

Telemecanique Sensors Cordset Pvc Female M8 3P Str 2M XZCPV0566L2

This item is Discontinued.

Telemecanique Sensors

Cordset Pvc Female M8 3P Str 2M (Discontinued)

Mfr # XZCPV0566L2
Zoro # G3154895
UPC # 785901137368
Country of Origin Czechia
Category Sensor Cordsets & Receptacles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCPV0566L2
Zoro #
G3154895
UPC #
785901137368
Country of Origin
Czechia

Dimensions

Cable Length
6.56 ft.
Cable Outer Diameter
4.6 mm

Details

Item
Cable
IP Rating
IP65, IP67
Max. Amps
3A
Temp. Range
-25 Degrees to 80 Degrees C
Number of Pins
3
Max. Voltage
60VAC/75VDC
Features
Mercury Free
Electrical Connection
straight female connector M8, 3 pins
Collar Material
metal
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Product Certifications
cULus
Accessory / Separate Part Category
cabling accessory
Cable Connector Fixing
screw-on
Minimum Insulating Resistance
1 GΩ
Ambient Air Temperature For Storage
-25-80°C
Contact Resistance
5000µOhm
Wire Insulation Material
PVC
Accessory / Separate Part Type
pre-wired connectors
Status Led
without
Cable Composition
3 x 0.25 mm²
Ambient Air Temperature For Operation
-25-80°C static
Line Rated Current
3A
Series Name
general purpose
Ip Degree Of Protection
IP65 || IP67

Description

Cordset Pvc Female M8 3P Str 2M
