  6. CylindricalUltrasonicSensor, Brass, M12

This item is Discontinued.

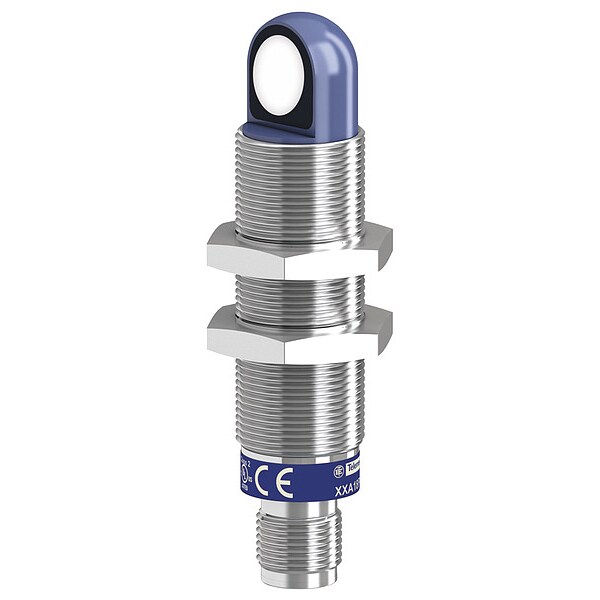

Telemecanique Sensors CylindricalUltrasonicSensor, Brass, M12 XXA18B1VM12

CylindricalUltrasonicSensor, Brass, M12 (Discontinued)

  • Mfr # XXA18B1VM12
  • Zoro # G3465988
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXA18B1VM12
Zoro #
G3465988
UPC #
785901060147
Country of Origin
United States

Dimensions

Diameter
18 mm
Length
0.71 in
Width
0.71 in
Depth
3.11 in
Length (Straight Wireway)
0.71 in
Height
18 mm
Minimum Size Of Detected Object
cylinder diameter 1 mm 600 mm
Threaded Length
45 mm
Overall Diameter
18 mm
Overall Height
79 mm

Details

Item
Cylindrical Ultrasonic Sensor
Case Material
Nickel plated brass
Circuit Type
Analogue
Power Required
14 to 30V DC
Output
0 to 10V
Electrical Connection
M12
IP Rating
IP65, IP67
Operating Frequency
200 kHz
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Response Time
100 msec
Material
metal
Description/Special Features
With synchronization mode, Software configurable
Standards
CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
Supply Voltage Limits
14-30 V DC
Blind Zone
105-105 mm
Sensor Design
cylindrical M18
Deviation Angle From 90° Of Object To Be Detected
-10-10°
[Sd] Sensing Range
0.105-1 m
Type Of Output Signal
analogue
Transmission Frequency
200 kHz
Wiring Technique
5-wire
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Product Certifications
EAC || E2 || RCM || cULus || Ecolab
Status Led
output state 1 LED yellow) || echo state 1 LED green)
Enclosure Material
Nickel Plated Brass
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Maximum Switching Capacity
>= 1 kOhm overload and short-circuit protection
Setting-Up
teach mode || configurator software
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Sensor Type
ultrasonic sensor
Sensor Name
XXA
Ambient Air Temperature For Operation
-25-70°C
Maximum Delay First Up
180 ms
Front Material
epoxy || rubber || resin
Function Available
with synchronisation mode || software configurable
Series Name
general purpose
Repeat Accuracy
0.001
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Maximum Delay Recovery
100 ms
[Us] Rated Supply Voltage
24 V DC reverse polarity protection
Ambient Air Temperature For Storage
-40-80°C
Current Consumption
30 mA
Ip Degree Of Protection
IP65 conforming to IEC 60529 || IP67
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Detection System
diffuse with 90° head)
Marking
CE
Analogue Output Function
0...10 V
Deviation Angle From 90° Of Object To Be Detected
-10-10°
Body Material
Brass
Switching Frequency
200 kHz
Series
XXA
Output Circuit Voltage - Maximum
10 V
Load Current - Maximum
30 mA
Sensing Distance - Maximum
100 cm
Style
Cylindrical
Output Circuit Type
Analog
Body Finish
Nickel Plated
Operating Temperature - Minimum
-13 Degrees F
Number of Pins
5
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Minimum
11 cm
Features
M18 Sensor Body, Reverse Polarity Protection, Right-Angled Sensor Face Orientation, Software Configurable, Synchronization Mode
Output Circuit Voltage - Minimum
0 V
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Voltage Rating
14-30V DC

Description

Cylindrical Ultrasonic Sensor, Case Material Nickel plated brass, Diameter 18 mm, 0 to 10V Output, Circuit Type Analogue, Electrical Connection M12, Length 0.71 in, Width 0.71 in, Depth 3.11 in, Power Required 14 to 30V DC, IP Rating IP65, IP67, Operating Frequency 200 kHz, Standards CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F, Description/Special Features With synchronization mode, Software configurable
