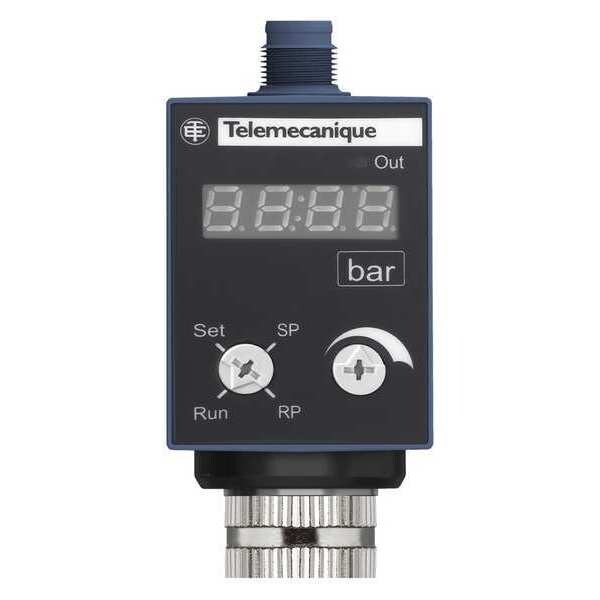

ElectronicPressureSensor, -14.5to6000psi (Discontinued)
Mfr #
ZMLPA1N2SH
Zoro #
G1662440
UPC # 785901902263
Country of Origin France
Category Pressure Sensors
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZMLPA1N2SH
- Zoro #
- G1662440
- UPC #
- 785901902263
- Country of Origin
- France
Dimensions
- Overall Depth
- 1.65 in
- Overall Height
- 3.03 in
- Overall Width
- 1.61 in
Details
- Item
- Electronic Pressure Sensor
- Range
- -14.5 to 6000 psi
- Analog Output
- 4 to 20mA
- Control Output
- Dehumidification Capability
- On/Off Setting
- Programmable
- Power Required
- 24V DC
- Electrical Connection
- 4-Pin M12 Male Connector
- Display
- 4 Digit LED
- Operating Temp. Range
- - 13 Degrees to 158 Degrees F
- IP Rating
- IP65, IP67, IP69K
- Housing Material
- PBT
- Standards
- cULus, EAC, EN/IEC 61326-2-3, EU RoHS, UL 61010-1, UL 508
- Electrical Design Output
- NPN
- Voltage Rating - Maximum
- 24 V DC
- Analog Output Current - Maximum
- 20 mA
- Operating Temperature - Maximum
- 158 Degrees F
- Analog Output Current - Minimum
- 4 mA
- Series
- ZMLP
- Operating Temperature - Minimum
- -13 Degrees F
- Switching Signal Output
- NPN
- Analog Signal Output
- 4-20 mA
Description
Electronic Pressure Sensor, Range -14.5 to 6000 psi, Analog Output 4 to 20mA, Control Output Dehumidification Capability, Programmable On/Off Setting, Power Required 24V DC, Electrical Connection 4-Pin M12 Male Connector, Display 4 Digit LED, Housing Material PBT, Operating Temp. Range - 13 Degrees to 158 Degrees F, IP Rating IP65, IP67, IP69K, Standards cULus, EAC, EN/IEC 61326-2-3, EU RoHS, UL 61010-1, UL 508
