- Item

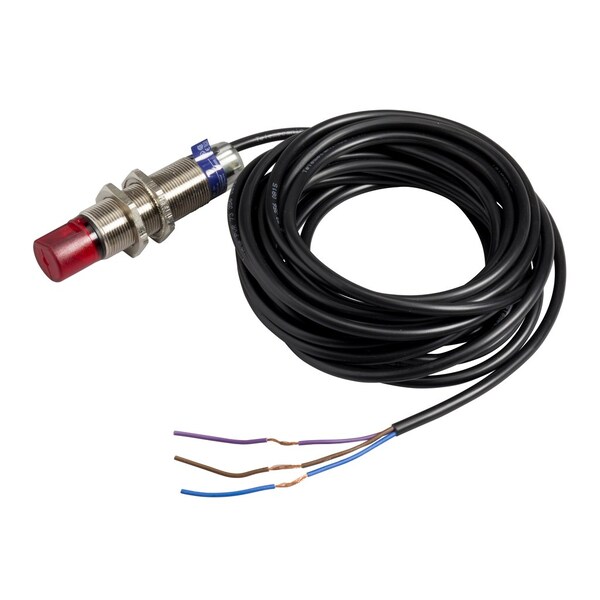

- Photo-electric sensor - XUB - reflex - 9
- Electrical Connection
- cable
- Material
- metal
- Current Consumption
- 35 mA no-load
- Setting-Up
- without sensitivity adjustment
- Switching Frequency
- <= 500 Hz
- Line Of Sight Type
- 90° lateral
- Ambient Air Temperature For Storage
- -40-70°C
- Emission
- infrared reflex
- Series Name
- general purpose single mode
- Maximum Delay Response
- 1 ms
- Type Of Output Signal
- discrete
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Add On Output
- without
- Maximum Delay First Up
- 15 ms
- Ip Degree Of Protection
- IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
- Sensor Design
- cylindrical M18
- Supply Voltage Limits
- 10-36 V DC
- Supply Circuit Type
- DC
- Maximum Delay Recovery
- 1 ms
- Detection System
- reflex
- Discrete Output Type
- PNP
- Sensor Name
- XUB
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Wire Insulation Material
- PvR
- Wiring Technique
- 3-wire
- Electronic Sensor Type
- photo-electric sensor
- Maximum Voltage Drop
- <1.5 V closed state)
- Lens Material
- PMMA
- Maximum Sensing Distance
- 5.5 m reflex
- Output Type
- solid state
- Status Led
- 1 LED yellow)output state
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Product Certifications
- CSA || UL || CE
- [Sn] Nominal Sensing Distance
- 4-4 m reflex need reflector XUZC50
- Discrete Output Function
- 1 NO
- Shock Resistance
- 30 gn 11 ms) IEC 60068-2-27
- Enclosure Material
- Nickel Plated Brass
- Ambient Air Temperature For Operation
- -25-55°C
