- Item

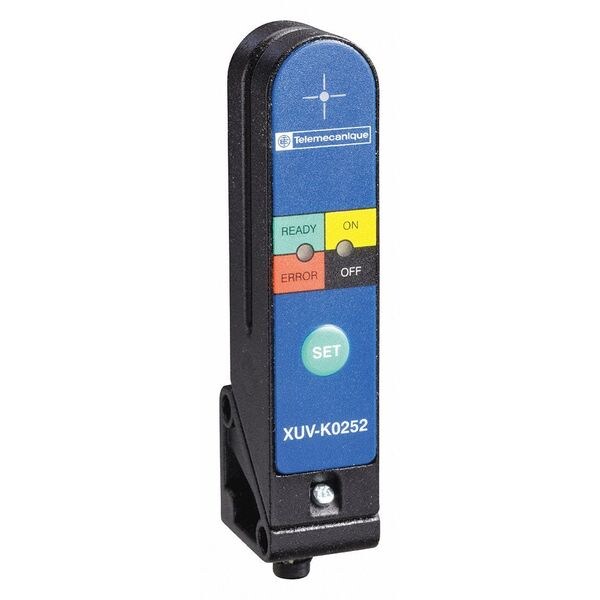

- Photoelectric Sensor
- Sensing Method
- Through-Beam
- Electrical Connection
- M8
- Style
- U-Slot
- Material
- metal
- IP Rating
- IP65
- Output Circuit Type
- NPN and PNP
- DC Voltage Rating
- 12-24V DC
- Standards
- CE
- Body Material
- Metal
- Features
- Painted Aluminum Enclosure
- Current Consumption
- <= 50 mA no-load
- Response Time
- 0.1 msec
- Sensor Design
- fork
- Detection System
- thru beam
- Maximum Delay Response
- 0.1 ms
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Supply Circuit Type
- DC
- Switching Frequency
- 25 kHz
- Discrete Output Function
- 2 NO/NC programmable
- Product Specific Application
- detection of labels
- Product Certifications
- CE
- Ip Degree Of Protection
- IP65 IEC 60529
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- zinc alloy
- Emission
- infrared
- Supply Voltage Limits
- 10-30 V DC
- Shock Resistance
- 30 gn 11 ms) IEC 60068-2-27
- Wiring Technique
- 3-wire
- Lens Material
- glass
- Maximum Voltage Drop
- <1.5 V closed state)
- Maximum Delay Recovery
- 0.1 ms
- Series Name
- Application packaging
- Electronic Sensor Type
- photo-electric sensor
- [Sn] Nominal Sensing Distance
- 2-2 mm
- Output Type
- solid state
- Setting-Up
- teach mode
- Type Of Output Signal
- discrete
- Sensor Name
- XUV
- Maximum Delay First Up
- 30 ms
- Ambient Air Temperature For Operation
- 0-55°C
- Discrete Output Type
- PNP and NPN
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Status Led
- sensor ready 1 LED green) || read error 1 LED red) || output state 1 LED yellow)
- Output Clamping Resistor
- 10 kOhm
- Ambient Air Temperature For Storage
- -20-70°C
- Number of Pins
- 4
- Electrical Installation Type
- Direct Connector
- Operating Temperature - Minimum
- 32 Degrees F
- Operating Temperature - Maximum
- 131 Degrees F
- Output Circuit Contact Form
- 2NO/1NC
- Product Type
- Photoelectric Sensor Transmitter and Receiver Set
- Includes Indicator Lights
- Indicator Lights Included
- Load Current - Maximum
- 100 mA
- Series
- XUV
