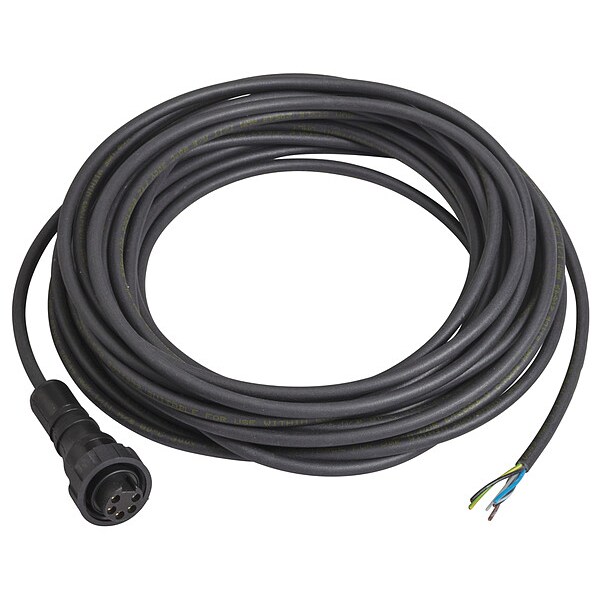

Telemecanique Sensors Pre-Wired Connector, 0.2300" Size, IP67 XZCP1764L2

This item is Discontinued.

Telemecanique Sensors

Pre-Wired Connector, 0.2300" Size, IP67 (Discontinued)

Mfr # XZCP1764L2
Zoro # G3548606
UPC # 785901681977
Country of Origin Czechia
Category Photoelectric Sensors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCP1764L2
Zoro #
G3548606
UPC #
785901681977
Country of Origin
Czechia

Dimensions

Cable Length
2 m
Face Dia.
1.0200"
Wire Size
0.2300 in
Wire Length
6.56 ft.
Cable Outer Diameter
5.9 mm

Details

Item
Pre-Wired Connector
Electrical Connection
straight female connector 7/8"16 UN, 5 pins (included earth pin)
IP Rating
IP67
Standards
CULus
Plug or Connector Type
Female
Keyway
Single
NEMA Rating
12, 13, 3, 4, 4X, 6, 6P
Color
Black
Max. Current
4A
Number of Pins
5
Plug End
Straight
Body Material
Metal, Thermoplastic Polyurethane Elastomer
Contact Resistance
5000µOhm
Ambient Air Temperature For Operation
-35-90°C static || -5-90°C flexing
Line Rated Current
4A
Product Certifications
cULus
Accessory / Separate Part Category
cabling accessory
Minimum Insulating Resistance
1 GΩ
Series Name
general purpose
Cable Composition
5 x 0.34 mm²
[Ue] Rated Operational Voltage
250 V AC
Collar Material
metal
Ip Degree Of Protection
IP67
Accessory / Separate Part Type
pre-wired connectors
Status Led
without
Cable Connector Fixing
screw-on
Wire Insulation Material
PUR
Ambient Air Temperature For Storage
-35-100°C

Description

Pre-Wired Connector, Wire Size 0.2300 in, IP Rating IP67, Standards CULus, NEMA Rating 12, 13, 3, 4, 4X, 6, 6P
