This item is Discontinued.

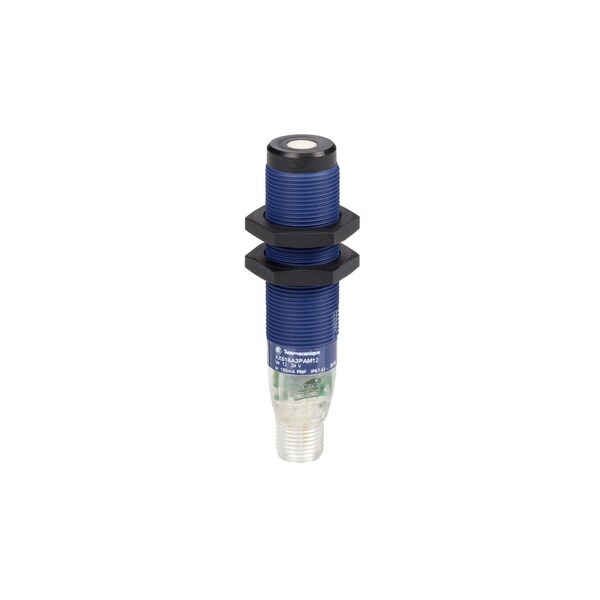

Telemecanique Sensors Ultrasonic sensor cylindrical M18-2 fi XX218A3PFM12

Ultrasonic sensor cylindrical M18-2 fi (Discontinued)

  • Mfr # XX218A3PFM12
  • Zoro # G3971822
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XX218A3PFM12
Zoro #
G3971822
UPC #
785901636984
Country of Origin
United States

Dimensions

Width
18 mm
Depth
79 mm
Height
18 mm
Threaded Length
43 mm
Minimum Size Of Detected Object
cylinder diameter 2.5 mm 0.15 m

Details

Item
Ultrasonic sensor cylindrical M18 - 2 fi
Electrical Connection
male connector M12 4 pins
Standards
IEC 60947-5-2
Material
plastic
Current Consumption
40 mA
Product Certifications
UL || cCSAus
Discrete Output Type
PNP
Maximum Switching Current
100 mA overload and short-circuit protection
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Beam Angle
6°
[Sa] Assured Operating Distance
0.051-0.508 m teach mode)
Sensor Name
XX2
Product Specific Application
for 2 filling levels monitoring
Enclosure Material
valox
Wiring Technique
3-wire
[Sn] Nominal Sensing Distance
0.5-0.5 m adjustable with remote teach push-button
Maximum Voltage Drop
1 V
Sensor Type
ultrasonic sensor
Type Of Output Signal
discrete
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Status Led
setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
Detection System
diffuse
Ambient Air Temperature For Storage
-40-80°C
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Maximum Delay First Up
100 ms
Series Name
Application
Ambient Air Temperature For Operation
-20-65°C
Ip Degree Of Protection
IP67 conforming to IEC 60529
Maximum Differential Travel
2.5 mm
Maximum Delay Response
15 ms
Maximum Delay Recovery
1000 ms
Discrete Output Function
1 NO
Supply Voltage Limits
10-28 V DC
Thread Type
M18 x 1
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Deviation Angle From 90° Of Object To Be Detected
-7-7°
[Sd] Sensing Range
0.051-0.508 m
Marking
CE
Sensor Design
cylindrical M18
Blind Zone
0-51 mm
Repeat Accuracy
0.0127
Front Material
epoxy
Transmission Frequency
300 kHz

Description

Ultrasonic sensor cylindrical M18 - 2 fi
