- MFR #
- XX518A1KAM12
- Zoro #
- G3932254
- UPC #
- -
- Country of Origin
- United States
- Item

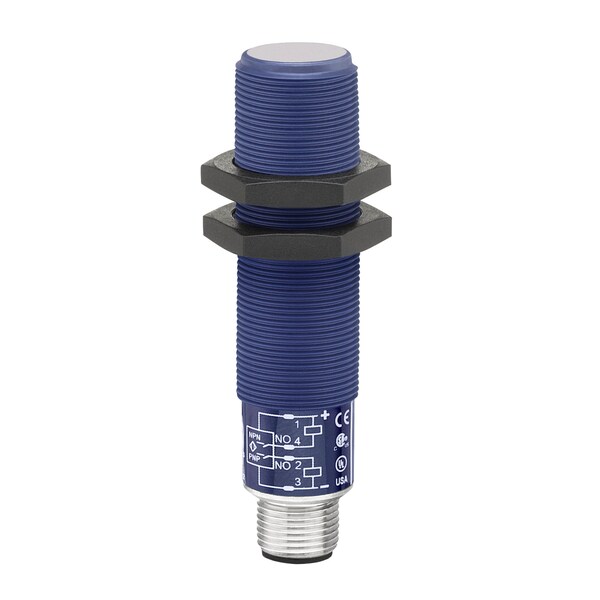

- Ultrasonic sensor cylindrical M18 - Sn 0
- Electrical Connection
- male connector M12 4 pins
- Standards
- IEC 60947-5-2
- Material
- plastic
- Beam Angle
- 8°
- [Sd] Sensing Range
- 0.025-0.152 m
- Ambient Air Temperature For Operation
- 0-50°C
- Sensor Name
- XX5
- Maximum Differential Travel
- 0.35 mm
- Discrete Output Type
- PNP and NPN
- Maximum Delay Response
- 3 ms
- Enclosure Material
- ULTEM
- [Sn] Nominal Sensing Distance
- 0.15-0.15 m fixed
- Supply Voltage Limits
- 10-28 V DC
- Maximum Delay Recovery
- 3 ms
- Discrete Output Function
- 2 NO
- Wiring Technique
- 4-wire
- Detection System
- diffuse
- Type Of Output Signal
- discrete
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Thread Type
- M18 x 1
- Current Consumption
- 60 mA
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Repeat Accuracy
- 0.007
- Maximum Voltage Drop
- 1 V
- Sensor Design
- cylindrical M18
- Switching Frequency
- <= 80 Hz
- Series Name
- general purpose
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Ambient Air Temperature For Storage
- -40-80°C
- Product Certifications
- cULus
- Sensor Type
- ultrasonic sensor
- Resistance To Electrostatic Discharge
- 8 kV level 4 IEC 61000-4-2
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- [Sa] Assured Operating Distance
- 0.025-0.152 m
- Blind Zone
- 0-19 mm
- Front Material
- silicone
- Transmission Frequency
- 500 kHz
- Marking
- CE
- Deviation Angle From 90° Of Object To Be Detected
- -10-10°
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
- Maximum Delay First Up
- 350 ms
