  6. Ultrasonic sensor cylindrical M30-Sn 1

This item is Discontinued.

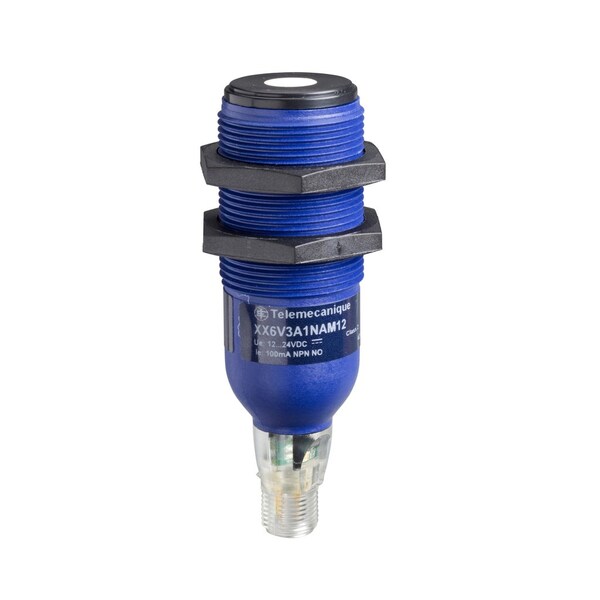

Telemecanique Sensors Ultrasonic sensor cylindrical M30-Sn 1 XX6V3A1NAM12

Ultrasonic sensor cylindrical M30-Sn 1 (Discontinued)

  • Mfr # XX6V3A1NAM12
  • Zoro # G3976908
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XX6V3A1NAM12
Zoro #
G3976908
UPC #
-
Country of Origin
United States

Dimensions

Width
30 mm
Height
96 mm
Threaded Length
37 mm
Minimum Size Of Detected Object
cylinder diameter 50.8 mm 1 m

Details

Item
Ultrasonic sensor cylindrical M30 - Sn 1
Electrical Connection
male connector M12 4 pins
Standards
IEC 60947-5-2
Material
plastic
Wiring Technique
3-wire
Enclosure Material
valox
Maximum Differential Travel
2.5 mm
[Sd] Sensing Range
0.1-1 m
Supply Voltage Limits
10-28 V DC
Product Certifications
UL || cCSAus
Marking
CE
Ip Degree Of Protection
IP67 conforming to IEC 60529
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Deviation Angle From 90° Of Object To Be Detected
-7-7°
Sensor Name
XX6
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Maximum Delay Recovery
75 ms
Blind Zone
0-100 mm
Transmission Frequency
180 kHz
Maximum Switching Current
100 mA overload and short-circuit protection
Sensor Design
cylindrical M30
[Sa] Assured Operating Distance
0.1-1 m teach mode)
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Storage
-40-80°C
Discrete Output Function
1 NO
Type Of Output Signal
discrete
Ambient Air Temperature For Operation
0-70°C
Maximum Voltage Drop
1 V
Thread Type
M30 x 1.5
Discrete Output Type
NPN
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Detection System
diffuse
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button
Maximum Delay Response
15 ms
Front Material
epoxy
Status Led
setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
Current Consumption
60 mA
Series Name
general purpose
Sensor Type
ultrasonic sensor
Maximum Delay First Up
75 ms
Switching Frequency
<= 70 Hz
Repeat Accuracy
0.009
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Beam Angle
7°

Description

Ultrasonic sensor cylindrical M30 - Sn 1
