- Item

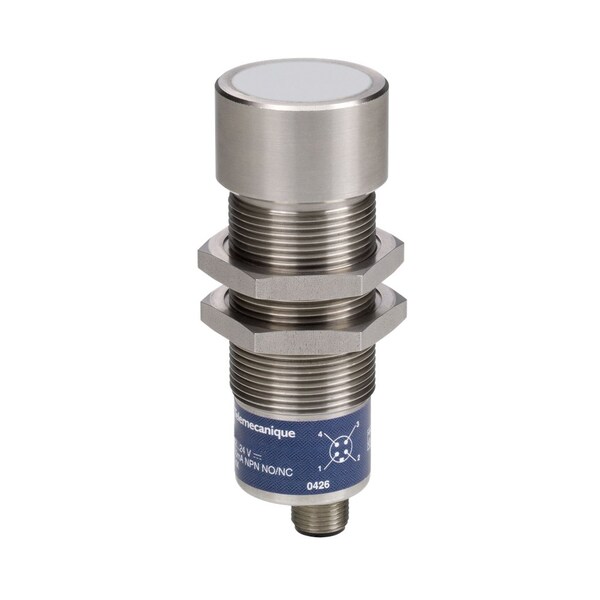

- Ultrasonic sensor - M30 stainless steel
- Electrical Connection
- male connector M12 4 pins
- Standards
- IEC 60947-5-2
- Material
- metal
- Ambient Air Temperature For Operation
- 0-60°C
- Switching Frequency
- <= 10 Hz
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Repeat Accuracy
- 0.009
- Ambient Air Temperature For Storage
- -40-80°C
- Beam Angle
- 10°
- Sensor Design
- cylindrical M30
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
- Current Consumption
- 50 mA
- Blind Zone
- 0-51 mm
- Maximum Delay Response
- 20 ms
- Enclosure Material
- stainless steel 303
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Front Material
- silicone
- Sensor Name
- XX6
- Thread Type
- M30 x 1.5
- Product Certifications
- cCSAus || UL
- Marking
- CE
- Maximum Delay Recovery
- 20 ms
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Status Led
- setting-up assistance 1 LED green/red (flashing))
- Deviation Angle From 90° Of Object To Be Detected
- -7-7°
- Discrete Output Function
- 1 NC + 1 NO
- Resistance To Electrostatic Discharge
- 8 kV level 4 IEC 61000-4-2
- Discrete Output Type
- NPN
- [Sa] Assured Operating Distance
- 0.051-0.991 m teach mode)
- [Sd] Sensing Range
- 0.051-0.991 m
- Maximum Voltage Drop
- 1 V
- Supply Voltage Limits
- 10-28 V DC
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Type Of Output Signal
- discrete
- Maximum Delay First Up
- 720 ms
- Function Available
- without synchronisation mode
- [Sn] Nominal Sensing Distance
- 1-1 m adjustable with teach push-button
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Series Name
- general purpose
- Detection System
- diffuse
- Maximum Differential Travel
- 2.5 mm
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Transmission Frequency
- 200 kHz
- Wiring Technique
- 4-wire
- Sensor Type
- ultrasonic sensor
